A multimeter tells you a voltage is 3.3 volts. It cannot tell you whether that rail is sagging every time a motor starts, whether an I2C line is being held low by a shorted pull-up, or whether your switching converter is ringing at 4 MHz. Almost everything interesting in electronics happens over time, and a scope is the only bench tool that shows you time.

That is why the best oscilloscopes for hobbyists matter more than the price on the box. This roundup covers ten units we would actually put on a bench: two-channel and four-channel bench scopes, handheld multimeter-and-scope combos, and pocket checkers for quick field checks. We weighed analog bandwidth, real-time sample rate, memory depth, channel count, whether serial decoding is unlocked in base firmware, and how readable the screen is from normal bench distance.

Most of the signals on a hobby bench sit well under 50 MHz. Anything quoted above 200 MHz is headroom you will probably never touch, though it costs you nothing but money. In 2026, the gap between a 50 MHz four-channel scope and a 100 MHz four-channel scope is where most serious hobby buying happens.

Top 3 Picks for Hobbyists

Best Oscilloscopes for Hobbyists in 2026

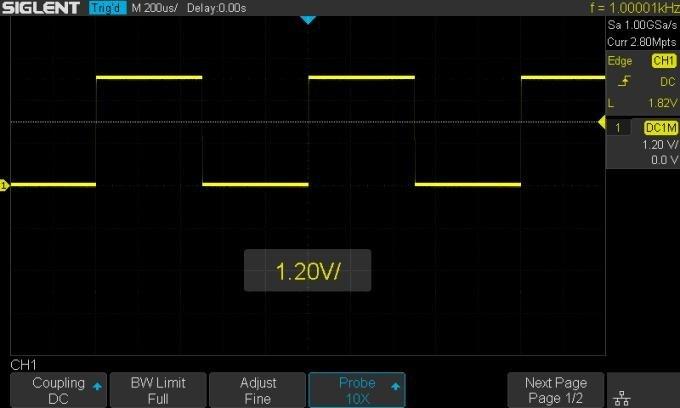

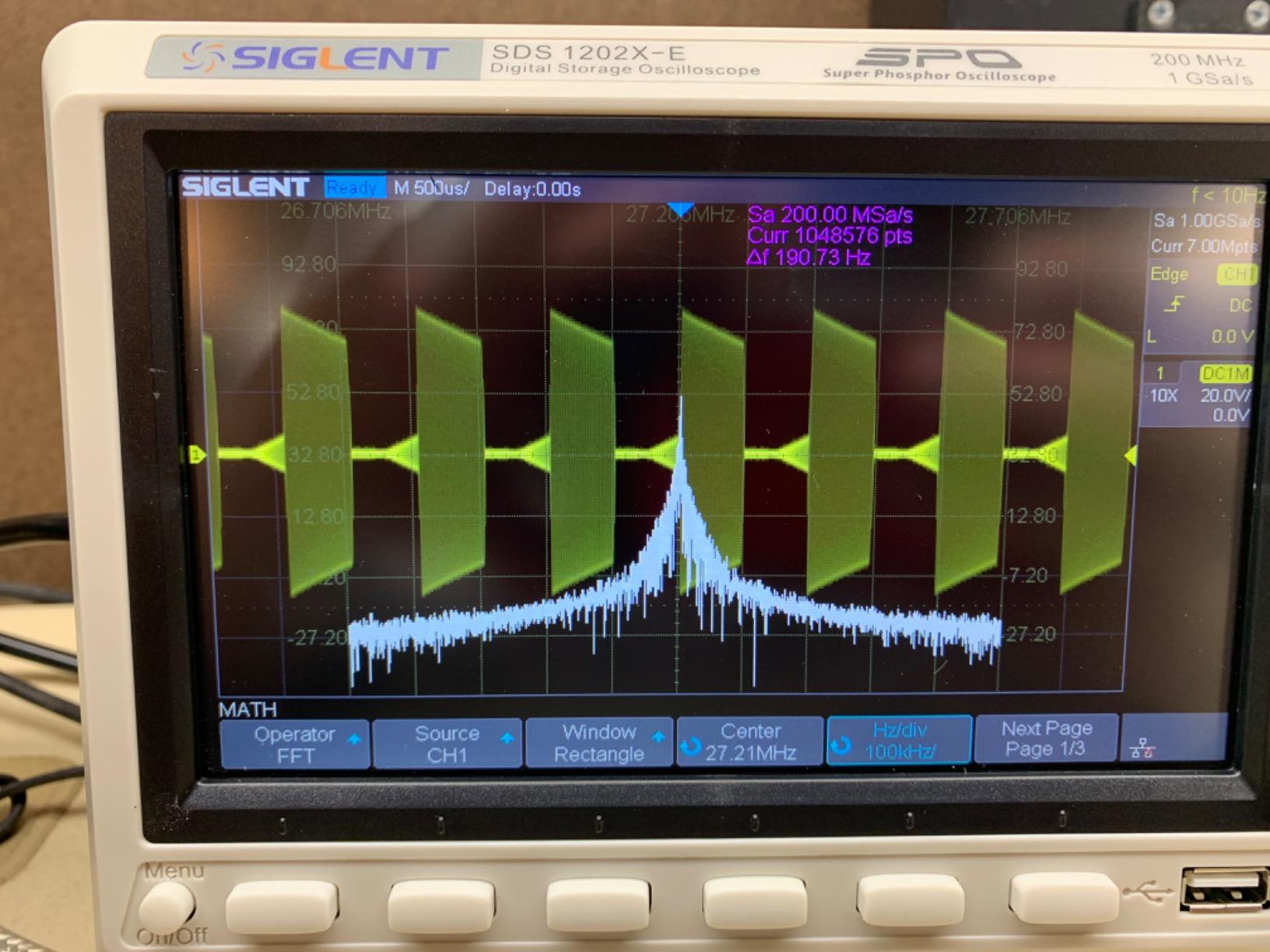

1. Siglent SDS1202X-E: The Best All-Round Bench Scope

I keep the SDS1202X-E on the main bench and it is the scope I reach for when I do not know what the circuit is about to do. Two hundred megahertz of bandwidth and 1 GSa/s real-time sampling means a 5 MHz square wave from a cheap logic level shifter looks like a square wave instead of a smear.

It weighs 5.5 pounds and measures 10 by 15 by 17 inches, which is a normal bench footprint. Fourteen megasamples of record length is the number that surprised me, because it is deep enough to hold a motor startup transient at a useful timebase without the scope decimating.

Serial decoding is not behind a license key. I2C, SPI, UART, RS232, CAN and LIN all trigger and decode straight out of the box, which matters more than the spec sheet suggests because firmware debugging lives or dies on being able to see bytes.

Owners rate the display as bright with adjustable brightness and transparency, and that is accurate for a room with overhead lighting. The display is where cheap scopes cut corners and this one does not.

Where this scope earns its place

If your work spans microcontrollers, motor drivers and audio electronics, two channels and 200 MHz cover all of it. The wide headroom also means a scope you will not outgrow in two years of learning.

The 14 Mpts of memory helps when you want to capture a whole burst of switching activity rather than a single edge. You can zoom into the interesting part afterwards instead of guessing at the timebase first.

Where it will frustrate you

The optional mixed-signal and arbitrary waveform generator modules are expensive next to the scope itself. Plan to treat them as a future purchase rather than an impulse buy.

Two channels means no third probe when you need to watch input, output and a reference clock together. If that is a daily requirement, look at the four-channel options instead.

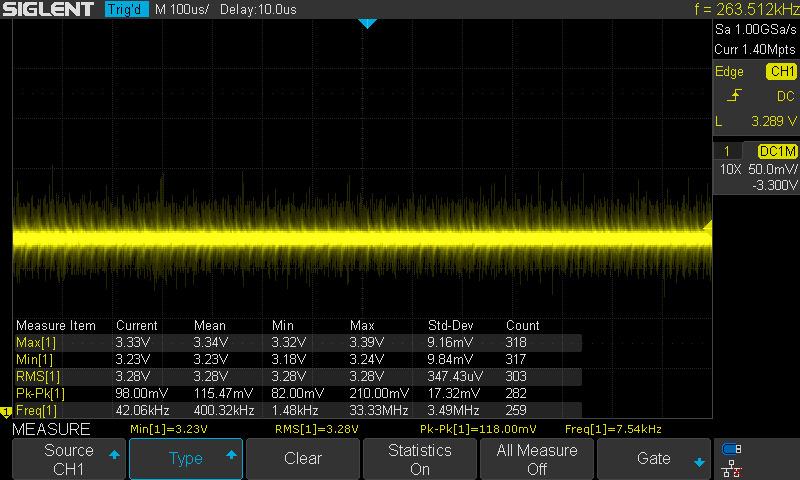

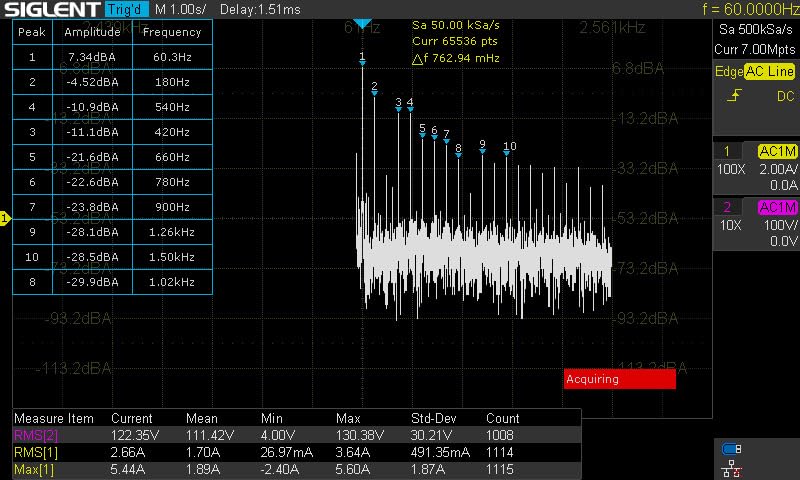

2. Siglent SDS1104X-E: Four Channels With Everything Unlocked

This is the highest-rated scope in the group at 4.8 across 966 reviews, and the rating makes sense once you use it. Four analog channels at 100 MHz changes how you debug: you can put a probe on supply, input, output and ground reference without swapping cables.

The box includes a quick start guide, calibration certificate, four passive probes and a USB cable. Having four matched probes in the box removes the usual first-week annoyance of hunting for compatible tips.

The dual ADC architecture is worth understanding. Sample rate holds up better with multiple channels active than on scopes that share a single converter, though some drop is still reported when all four are running at once.

Built-in Ethernet with a web server means I can open the display on a tablet across the room while leaving my hands on the board. That feature alone changed how I work.

Where this scope earns its place

If you are working on anything with a clock, a reset line and a data bus, four channels removes the single most common source of wasted time. Three-year-old firmware bugs usually disappear when you can correlate all the lines in one capture.

The standard decoder set covering I2C, SPI, UART, CAN and LIN is unlocked by default, so there is nothing to buy later to decode your ESP32 peripherals.

Where it will frustrate you

The adjust and select knob is push-to-click and reviewers report it overshooting into the next menu item. It is an irritation you learn in a week, not a dealbreaker.

Firmware and operating system updates are separate downloads, and some settings do not persist between them. Budget ten minutes after an update before you trust what is on screen.

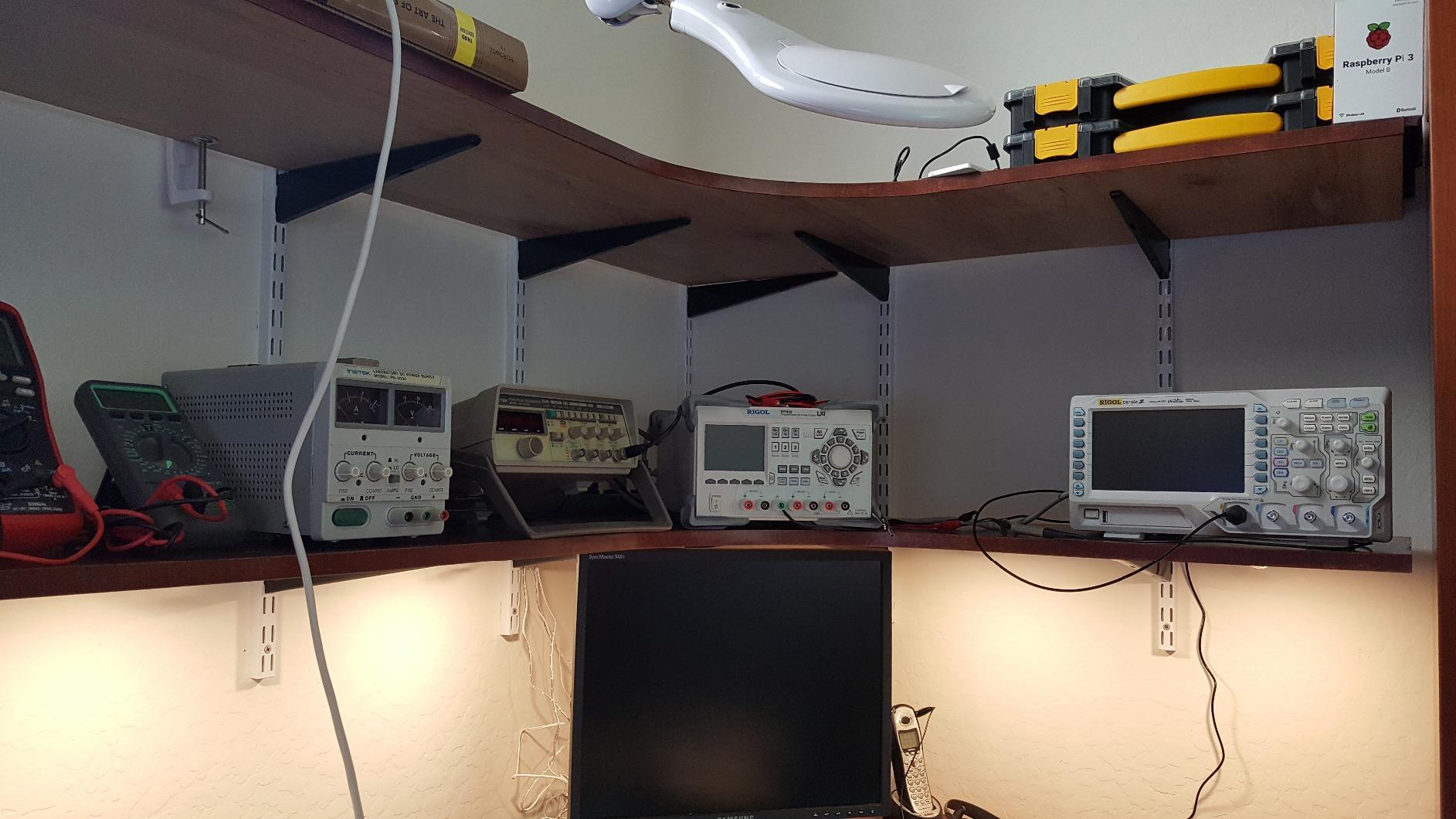

3. Rigol DS1054Z: Four Channels, Deep Memory, No Licence Keys

The DS1054Z has been the hobbyist default for years for a good reason. Four channels, 50 MHz of bandwidth, and a feature set that normally shows up on instruments costing several times more.

Memory depth is the headline: 24 megasamples on one channel, 12 on two, and 6 megasamples with three or four channels active. Combined with a capture rate of up to 30,000 waveforms per second and record and playback of up to 60,000 frames, it will catch a glitch that a slower display simply cannot.

The intensity graded display shades trace density, so a rare event shows up as a bright band against a dim background. That is how you find an intermittent fault without leaving the scope running all afternoon.

USB host, USB device and LAN give you three ways to move screenshots and captures to a PC. The on-screen help button is genuinely useful when you are learning what a trigger mode does.

Where this scope earns its place

For most hobby signals this is more than enough. Audio, microcontroller digital lines, relay timing and modest power supply checks all sit comfortably inside 50 MHz.

If you want to learn persistence and infinite record style investigation rather than just read a waveform once, the deep memory makes those techniques practical on a hobby budget.

Where it will frustrate you

The cooling fan is audible in a quiet room, which matters more than it sounds if you work at night. Some people live with it; others put the scope on a shelf with a small pad under the feet.

The probes supplied in the box are the weak point and are difficult to tune. Budget for a proper set of probes if accurate measurements matter to you, and check channel 2 and 4 colours carefully since they are close shades.

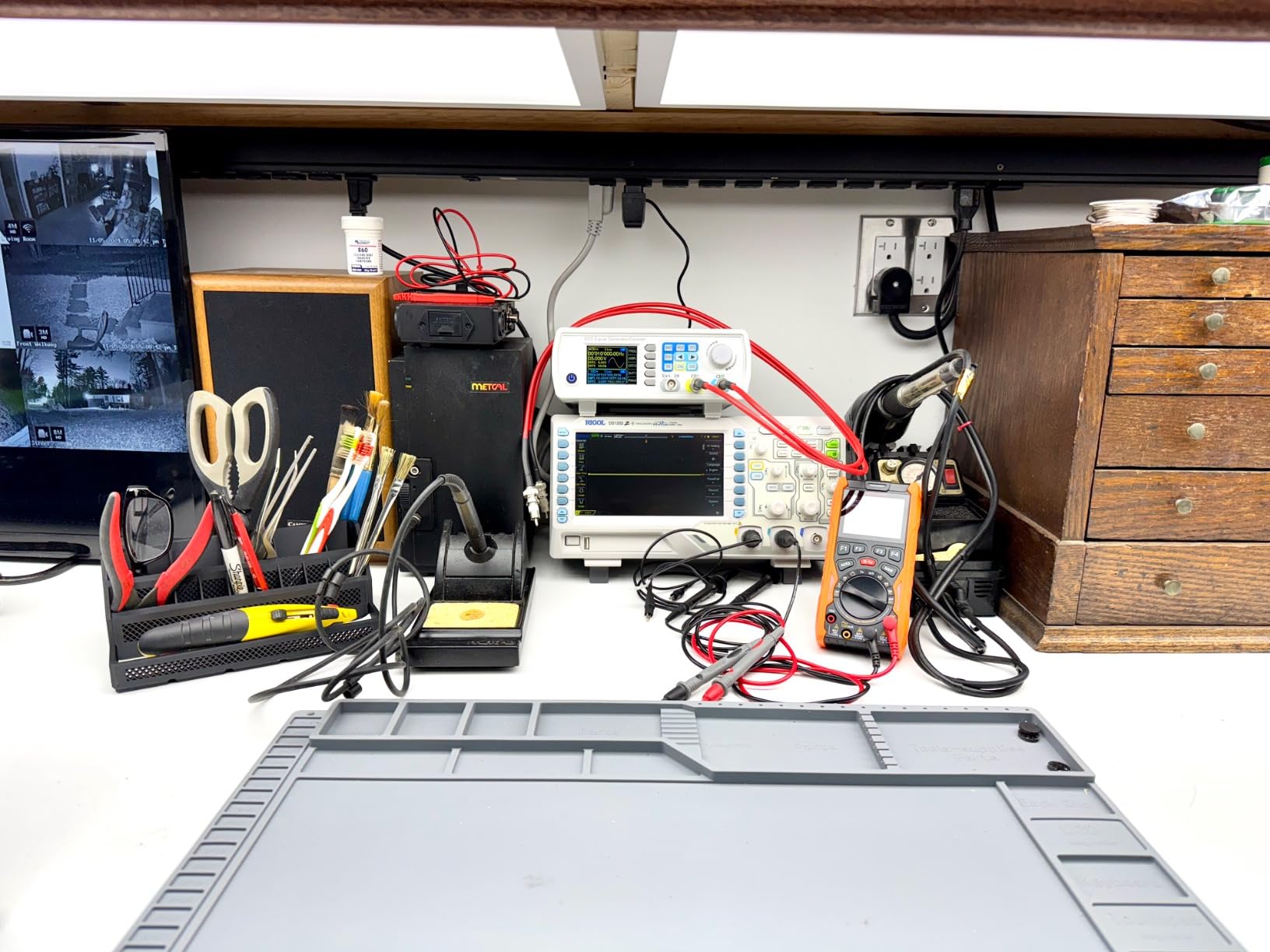

4. Rigol DS1202Z-E: Two Channels With Serious Memory Depth

The DS1202Z-E is the two-channel answer for anyone who cares more about how long a capture is than how many channels it has. Twenty-four megasamples on a single channel, twelve on two, at 200 MHz of bandwidth.

Audio and guitar amplifier builders rate the 7 inch WVGA display highly, because 800 by 480 pixels on a bench at arm length beats a small screen every time. Intensity graded colour rendering shows signal density clearly.

An external trigger input separates the timing reference from the two measurement channels. On a two-channel scope that is a genuine advantage rather than a luxury, and it is one reason this model stands apart from cheaper two-channel units.

Up to 30,000 waveforms per second capture rate with record and playback up to 60,000 frames gives you a decent chance of catching a one-off event such as a startup transient or an inductive spike.

Where this scope earns its place

Pick this if you are analysing audio, switching converters or anything where the shape of a long burst matters more than watching three lines at once. The main unit carries a three-year warranty, which is unusual at this level.

Build quality and the included probe run ahead of what the specification list suggests. Owners consistently describe it as solidly built rather than plasticky.

Where it will frustrate you

The front USB port is USB 2, so pulling a full 24 megasample capture off the scope is slow. Plan to save reduced-size screenshots for quick documentation and use the network path for bigger transfers.

The multifunction knob overshoots selections often enough to annoy you, and large USB flash drives are not recognised. There is also no printed manual, so budget evening to learn the menu structure.

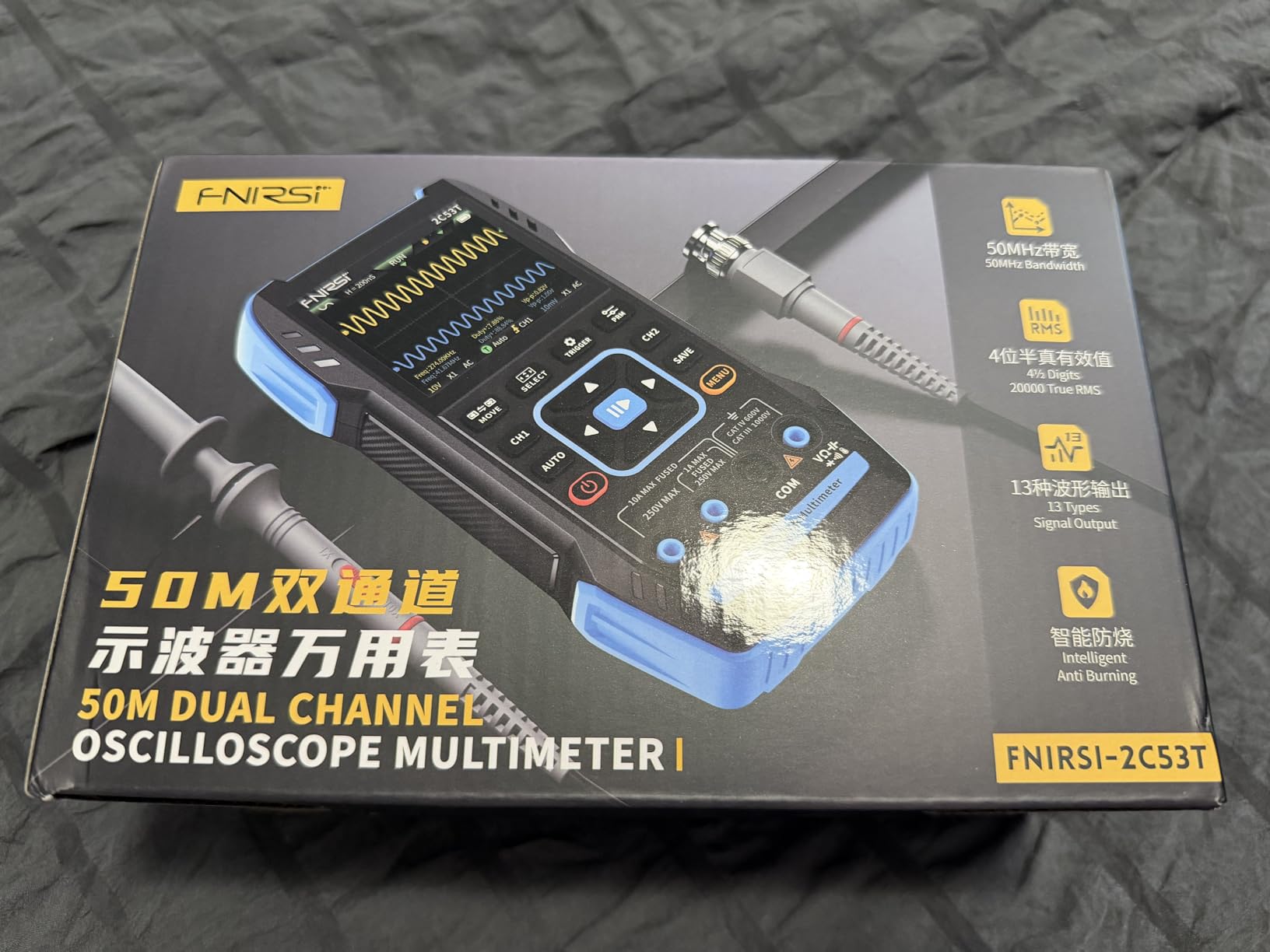

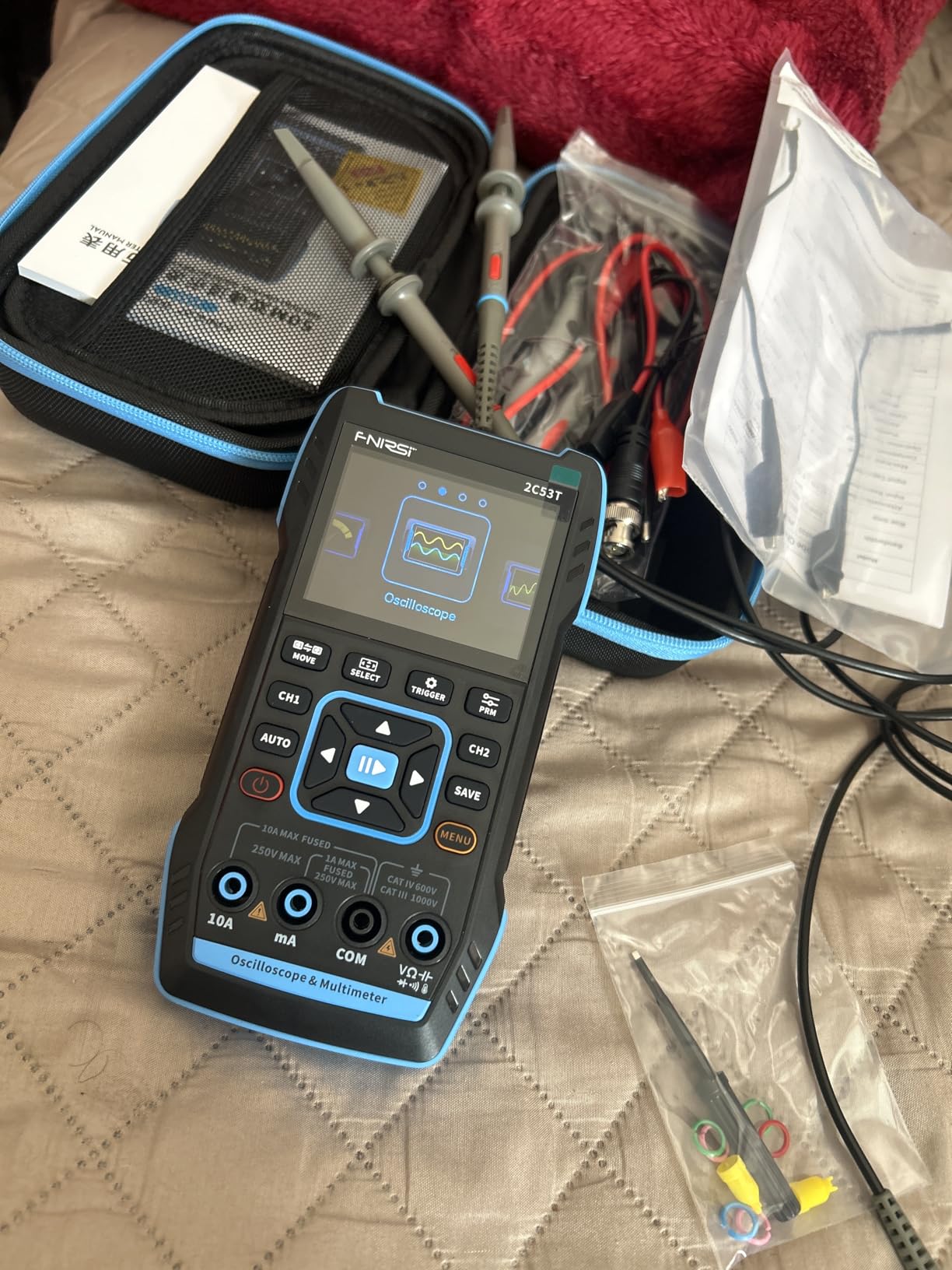

5. FNIRSI 2C53T: Three Instruments In One Small Box

The 2C53T answers a different question than the bench scopes: what if you want one device that scopes, meters and generates signals. It packs a dual-channel 50 MHz scope, a 4.5-digit 19999 count true-RMS multimeter and a DDS generator with 13 waveforms up to 50 kHz.

At 400 grams and 6.57 by 3.5 by 1.38 inches it fits in a bag. The included storage case, 10X probe, crocodile clip probe and multimeter probe mean you can start using it the day it arrives.

One-key save, screen capture and Type-C upload to a PC are genuinely useful for a hobbyist documenting a fault. Reference waveform comparison lets you overlay a known-good trace against a suspect one, which is a cheap way to spot drift.

Note the record depth: 1 Kpts. That is shallow, and it is the single specification that keeps this out of serious bench work.

Where this scope earns its place

It ranks at the top of the Lab Oscilloscopes category on Amazon, which tells you how much hobbyist demand exists for this kind of all-in-one box. If your work is field service rather than bench development, the battery and case are the point.

The multimeter handles AC voltage to 750 V, DC voltage to 999.9 V, current, resistance to 19.99 megaohms and capacitance to 99.99 millifarads. For most repair jobs you would otherwise carry two instruments.

Where it will frustrate you

A 2.8 inch LCD is uncomfortable for long trace reading, and menu-driven controls with few dedicated knobs slow down the repeated adjustments that a bench scope lets you do quickly.

The 4.3 average rating across 883 reviews reflects a real learning curve, with an 8 percent one-star share that mostly complains about the screen and the shallow memory. Know what you are buying before you rely on it for signal analysis.

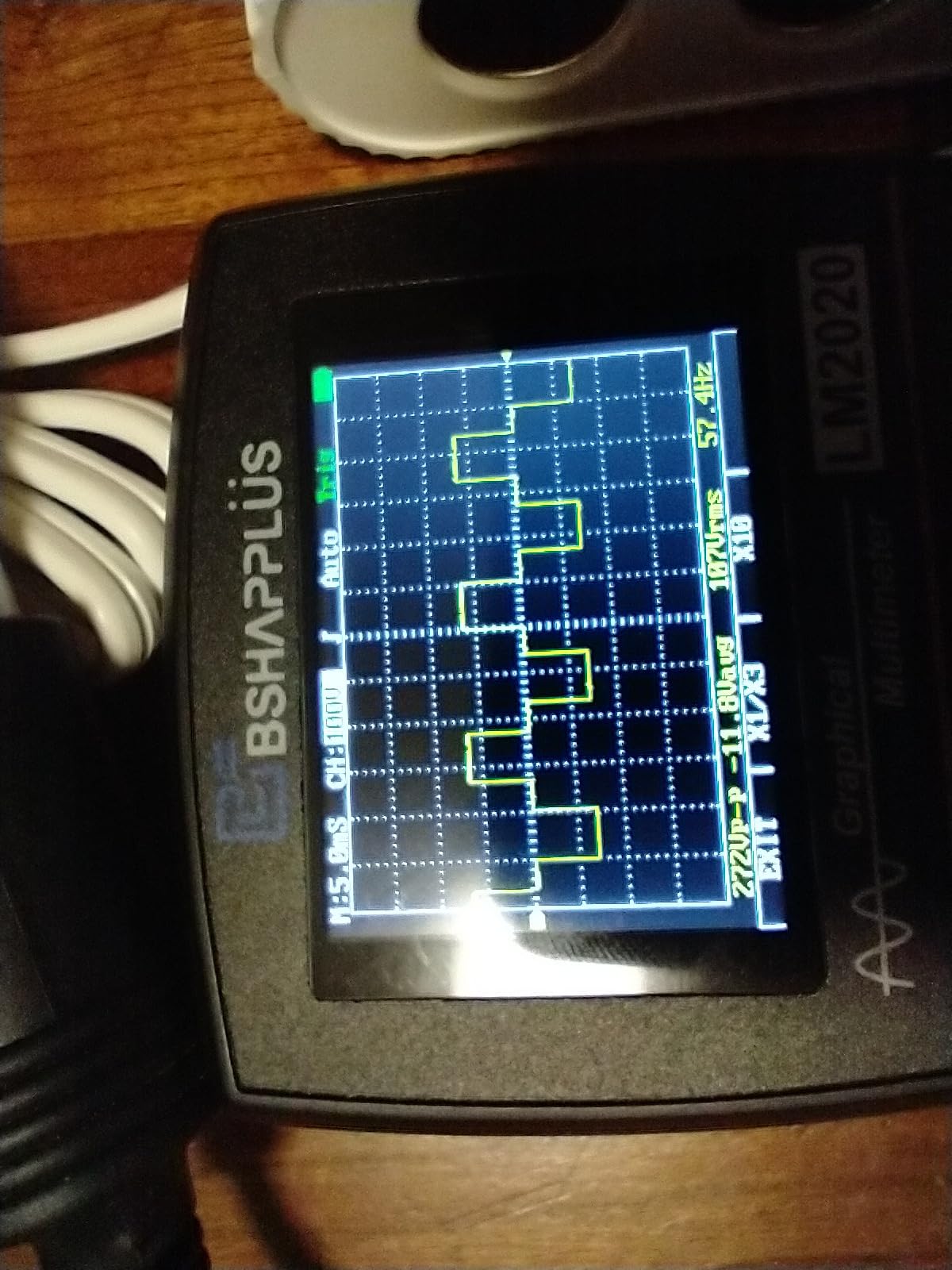

6. IMARS HO-3S: Seventy Megahertz That Fits In A Pocket

Seventy megahertz of dual-channel bandwidth in a 3.3 by 6.3 by 1.3 inch body is the headline here, paired with a 20000 count true-RMS multimeter and a signal generator output for sine, triangle and square waves.

Car audio hobbyists dominate the reviews, using the scope half to set amplifier gains and to look at PWM, and the meter half as a daily instrument. That is a sensible pairing for field work.

The replaceable 18650 battery with roughly four hours of continuous use and Type-C charging is a better long-term story than a sealed cell. Adjustable auto sleep between 5 and 60 minutes lets you tune it to your working pattern.

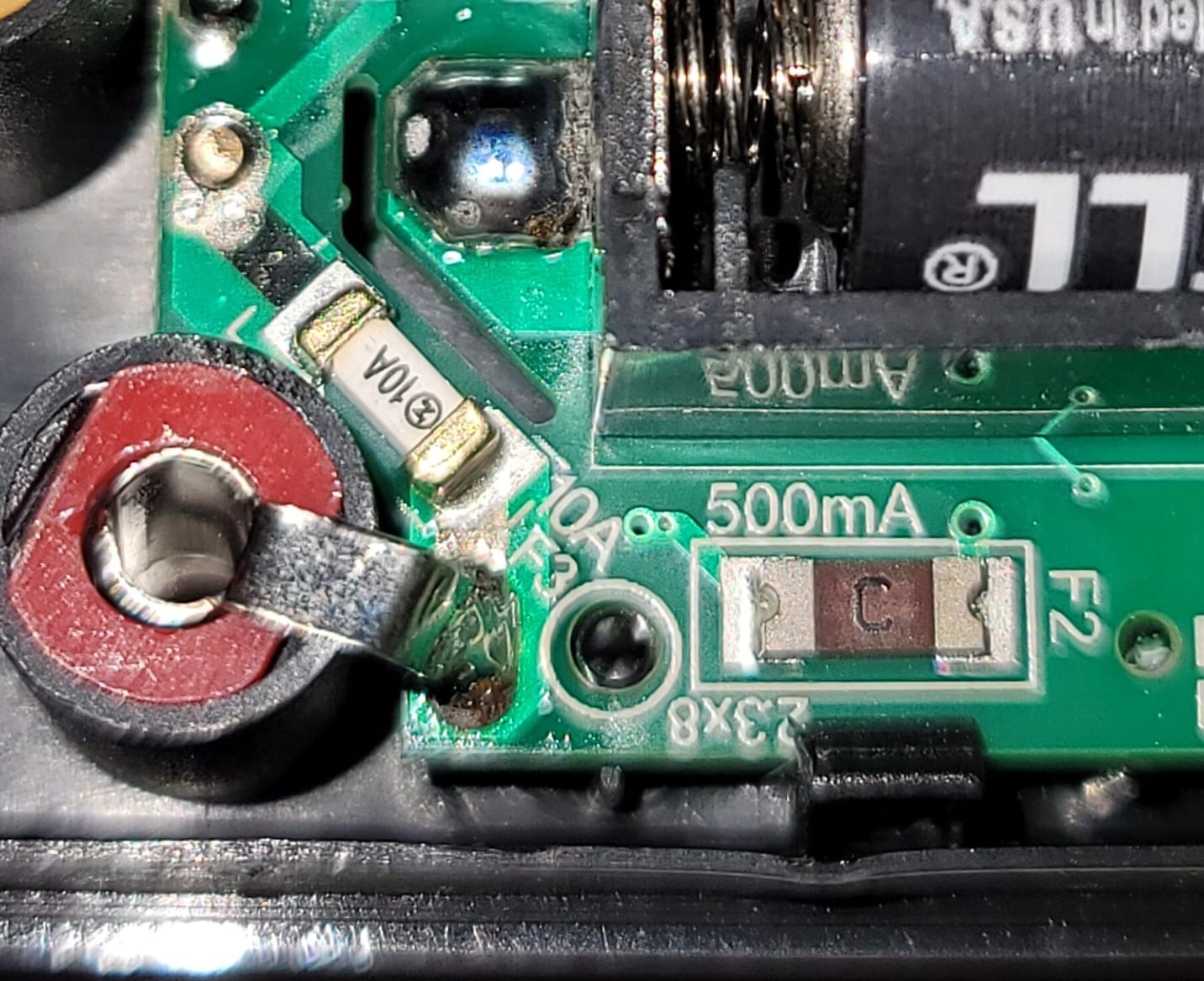

Safety markings are IEC1010-1 and CAT II 1000V with dual fuse protection and a 24V overvoltage alarm, which is the information that matters when you clip onto something that is not your own board.

Where this scope earns its place

Taking a scope to somebody else’s house, a car or a club night is where this class wins. The integrated flashlight and eight-level backlight solve the awkward lighting you actually find on site.

Storing 1000 meter measurement sets and 200 waveform records with one-touch recall means you can document a fault before you fix it and compare afterwards.

Where it will frustrate you

Scope controls take practice without the manual, and the accuracy is practical only to roughly 100 kHz for most users despite the 70 MHz bandwidth headline. Treat it as a portable field instrument, not a bench replacement.

The colour screen is hard to read in direct sunlight and auto-ranging occasionally shows spurious overload indications, which can send you chasing a fault that is not there.

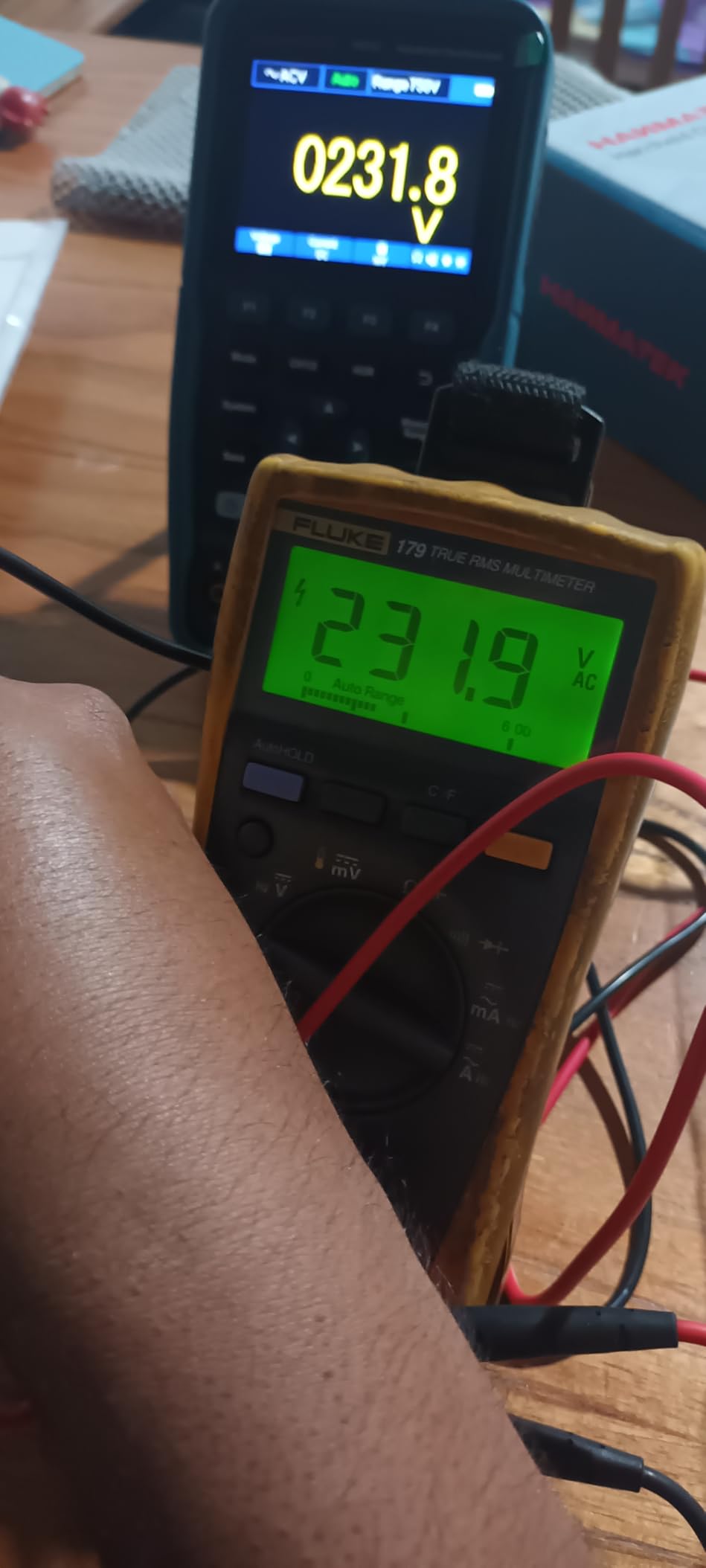

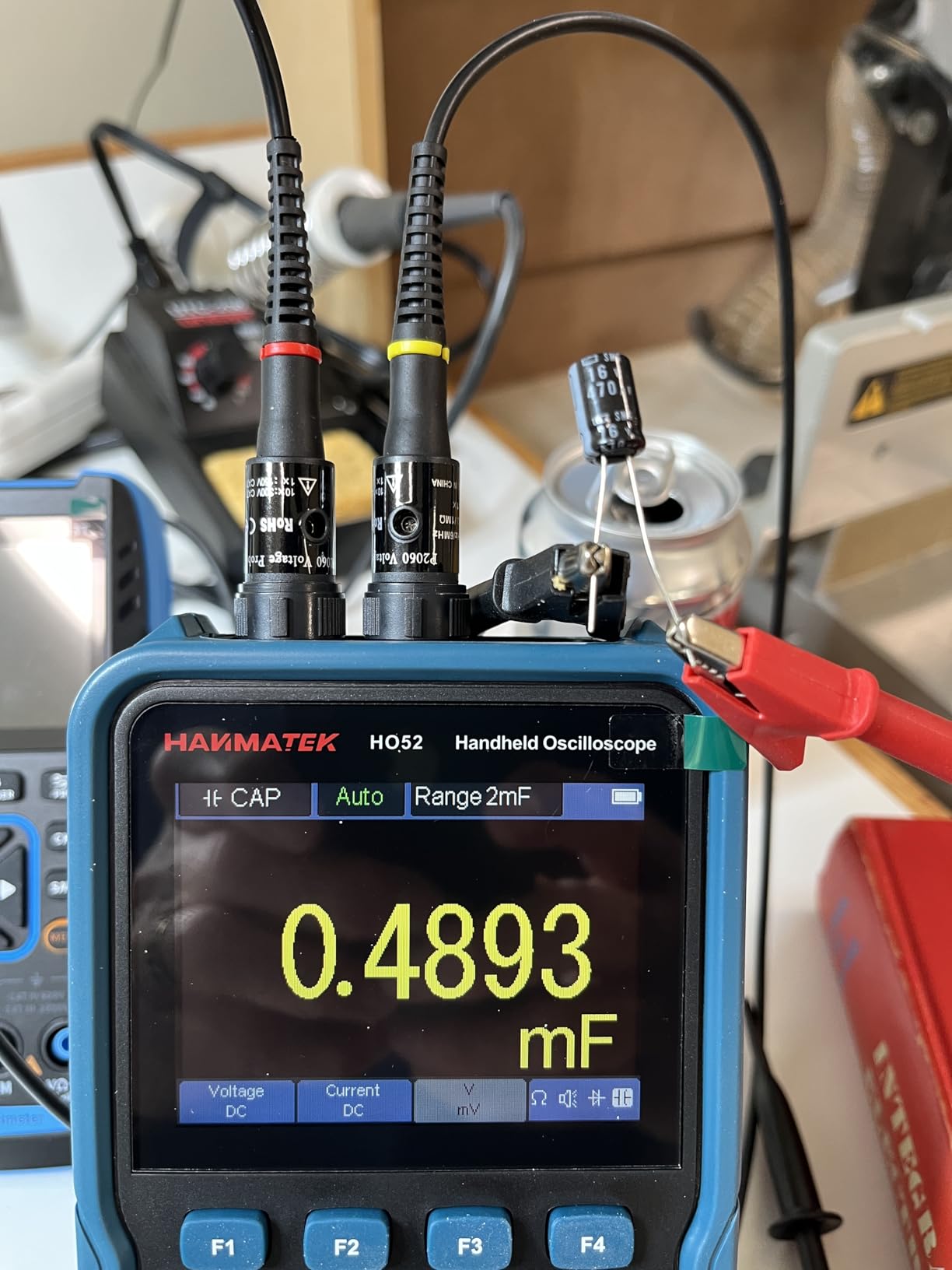

7. HANMATEK HO52: Real Fifty Megahertz For Very Little

The HO52 gets something right that many cheaper handhelds do not: independent multimeter and oscilloscope inputs. You are not swapping a lead to change instruments, which removes one of the most annoying habits in field work.

Scope mode gives two channels at 50 MHz, 250 MSa/s real-time sampling, up to 8k dot records and a refresh rate of up to 10,000 waveforms per second. Meter mode is a 4.5 digit true-RMS meter to 750 V AC and 1000 V DC.

Reference waveform overlay, cursor measurement, seven automatic measurement functions and XY mode are all present. A PC can read saved images or CSV waveforms over Type-C, which is enough to graph a captured burst later.

Self-calibration helps you correct baseline drift, and a long press on auto also recalibrates. At 16 ounces with a backlit 3.5 inch TFT it is easy to carry.

Where this scope earns its place

Its 4.7 rating across 589 reviews sits above most of the entry-level field and comes with only a 1 percent one-star share. For a first oscilloscope purchase, learning to read waveforms on a real 50 MHz instrument beats practising on a USB dongle.

USB Type-C means a power bank can run it during a long session away from a wall, which matters more than it sounds when you are testing something in a cupboard.

Where it will frustrate you

Eight thousand dots of record depth is short for capturing bursts of data, and the 3.5 inch TFT is small when you want to read a slow ramp carefully.

There is no rotary dial, so every adjustment is button driven, and 50 MHz is the ceiling of what you can measure. Know those limits before you blame the scope for a signal you simply cannot capture.

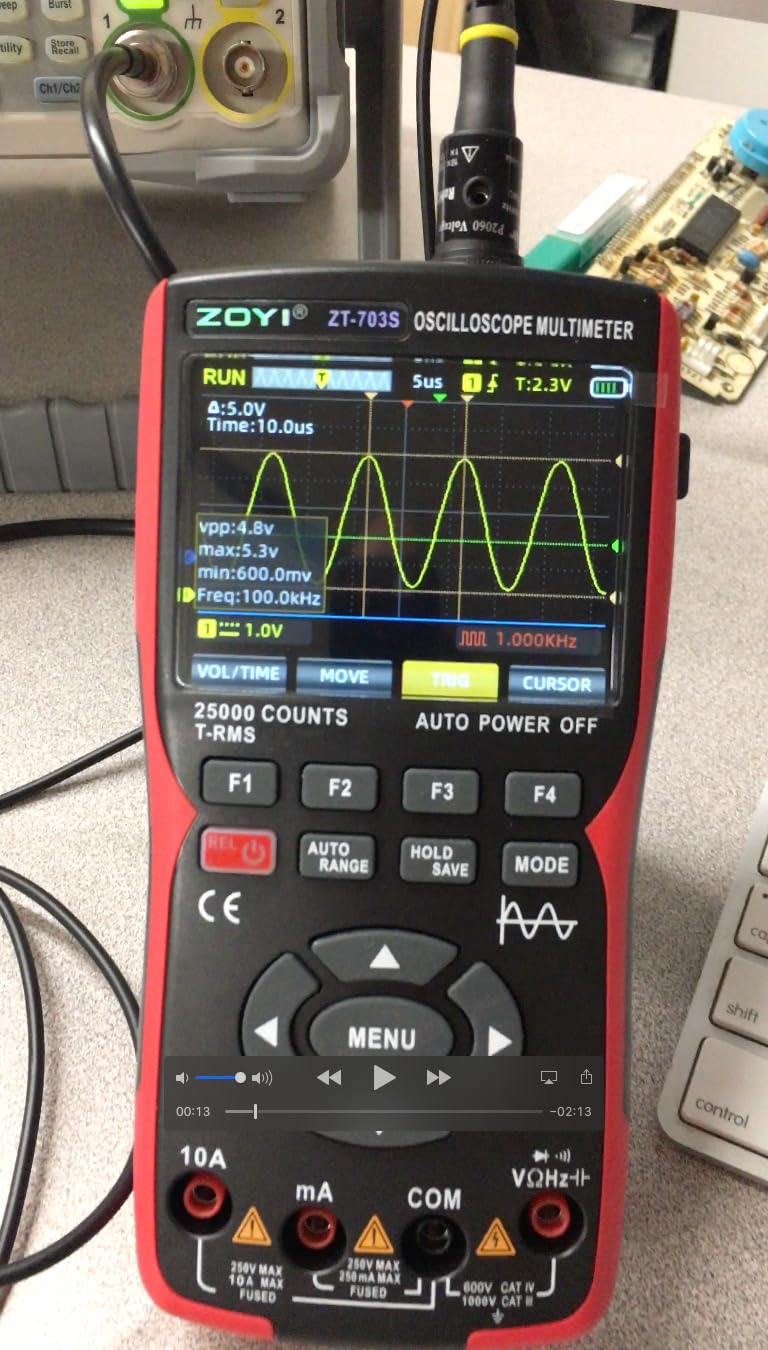

8. ZOYI ZT-703: A Dual-Channel Toolkit For Automotive Work

The ZT-703 is a three-in-one with a dual-channel scope, a 25000 count multimeter covering resistance, capacitance, continuity, diodes and current, and a sine, square and triangle generator with a demonstration window.

Two operating modes is the interesting part. Normal mode gives 200 MSa/s and 30 MHz at lower power draw, while high-speed mode pushes 280 MSa/s and 50 MHz. Storage depth is 128K.

Owners rate the multimeter accuracy highly and note how quickly it auto-ranges, which is exactly what you want on a vehicle electrical system where the fault is unknown. Automatic waveform recognition in auto mode also saves time on repetitive work.

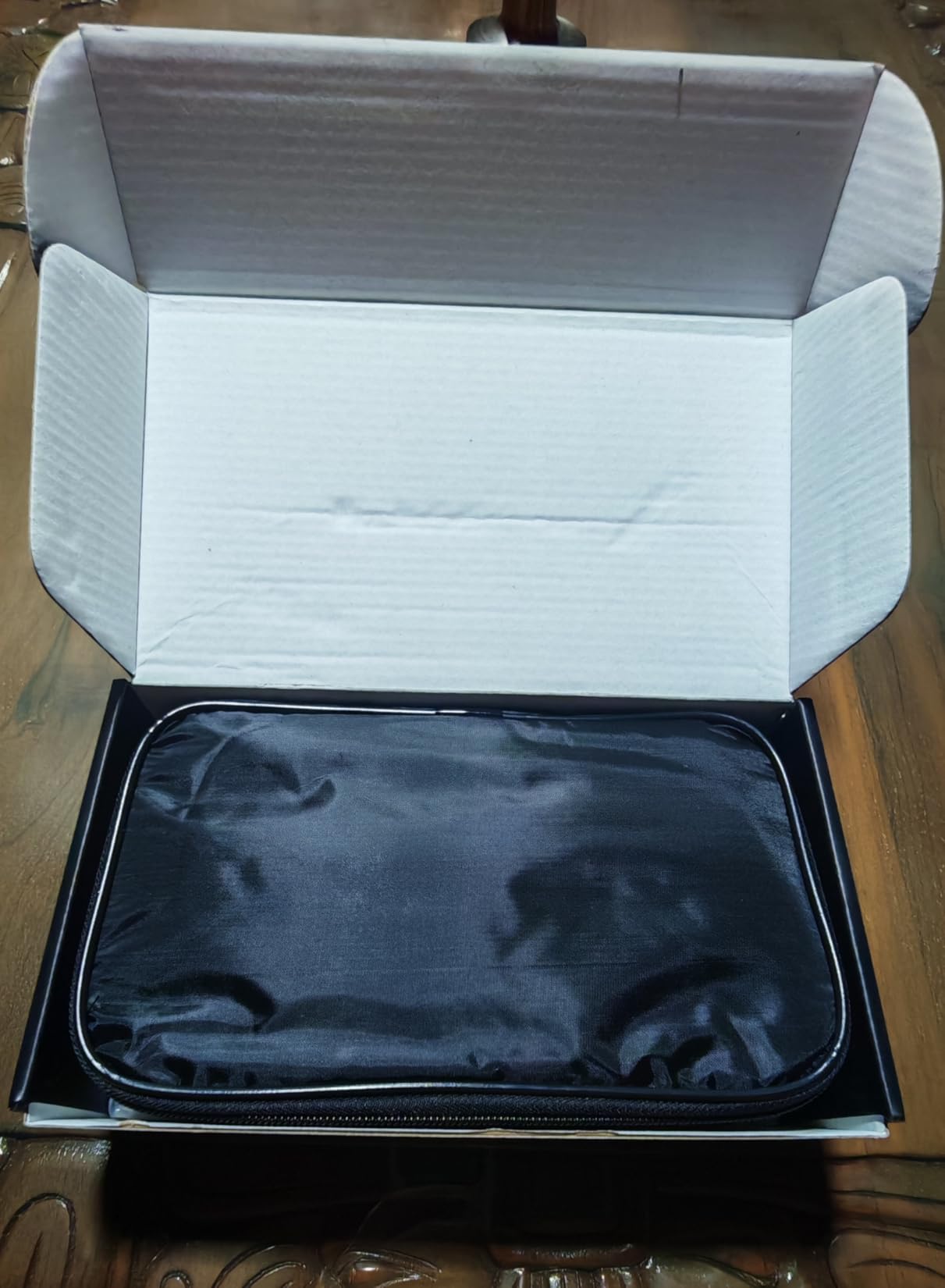

The box includes a probe set, test leads, charging cable and a cloth bag. It weighs 380 grams and charges over Type-C.

Where this scope earns its place

Automotive diagnostics, where you are watching a signal that may or may not be clean, suit this unit well. The 4.7 rating across 307 reviews comes with only a 1 percent one-star share, which is a good sign for the hardware.

The bright colour screen is readable for older users and auto-dims for power saving, so a single unit works for a whole workshop.

Where it will frustrate you

Reviewers report real-world bandwidth well below the stated 50 MHz on fast edges and square waves. Read the 30 MHz normal mode figure as the honest one for sharp signals.

There are no rotary dials, so divisions and cursors need menu navigation, and the display sleep timeout is aggressive. The generator is usable mainly for probe calibration and gentle waveforms.

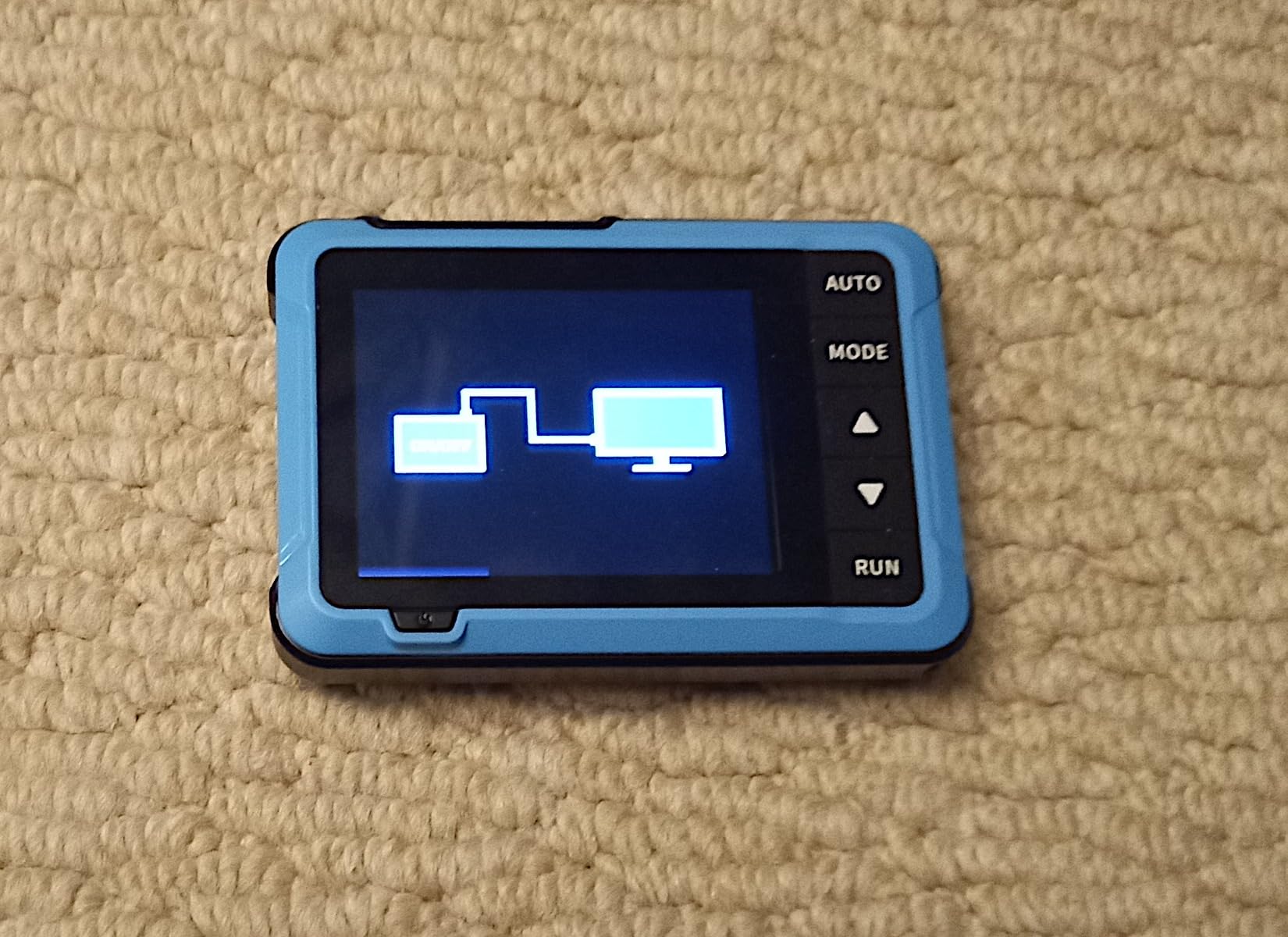

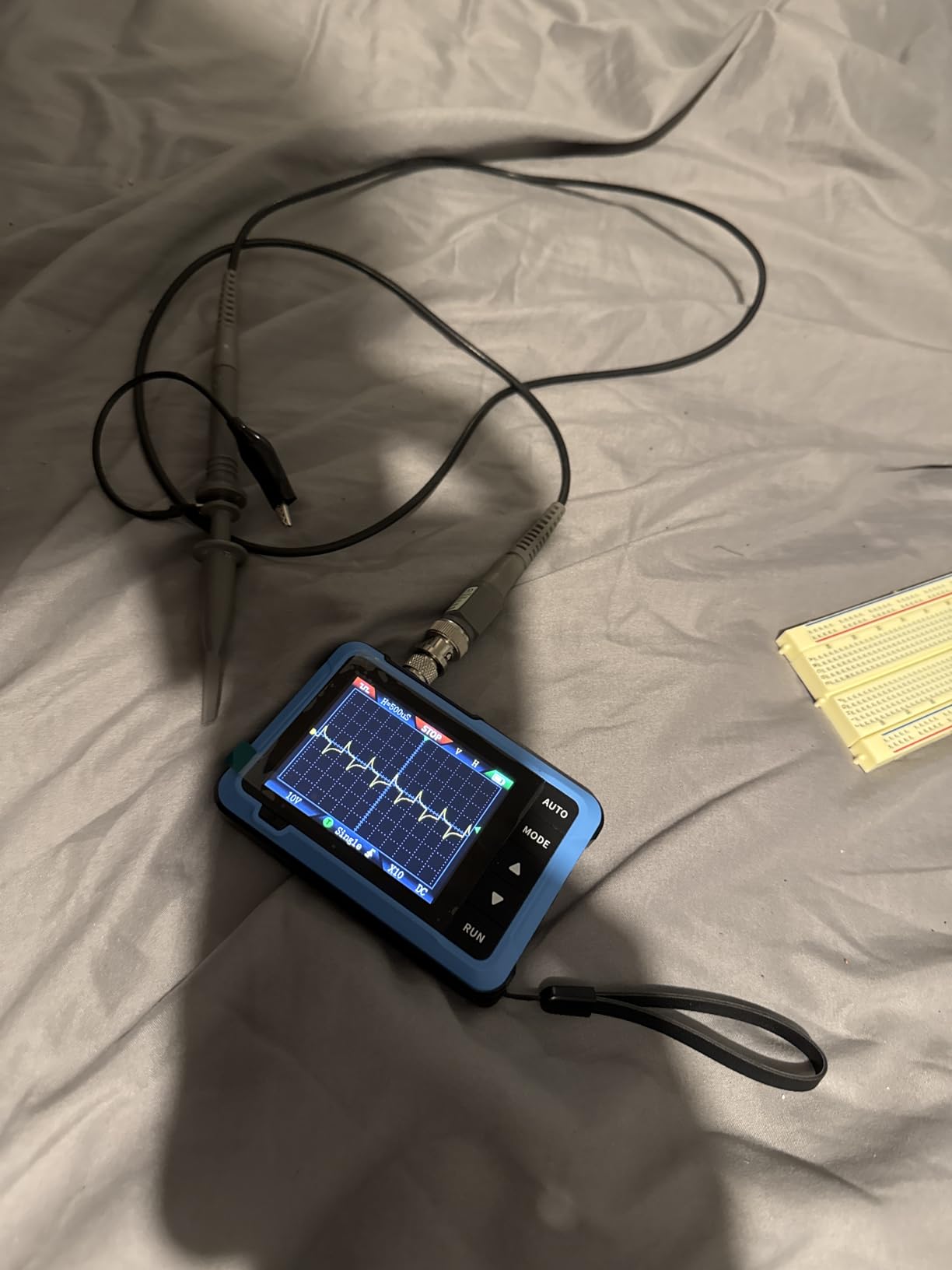

9. FNIRSI DSO-510: Ten Megahertz And A Signal Generator In Your Pocket

The DSO-510 is aimed squarely at car audio hobbyists and anyone learning signal shapes on a small budget. It pairs a single-channel 10 MHz scope with a DDS generator offering 13 waveforms up to 50 kHz, and it does both in 14 ounces.

Sampling is 48 MS per second across a 50 ns to 20 second timebase range, with voltages up to 400 V measurable. That timebase spread is the useful part for audio and slow switching work.

Infinite afterglow is a display feature that keeps a trace visible, so short transients linger on screen long enough to read. Waveform scaling, pause, move, save and export are all supported, and one-key AUTO sets parameters for you.

Car audio builders use it to spot clipping on amplifier output and to view PWM, which is a narrow job the unit does well.

Where this scope earns its place

At 3.8 by 2.68 by 0.75 inches it is one of the smallest picks here, and a 320×240 display with adjustable brightness stays readable in the field.

If your entire need is seeing waveform shape, clipping and simple transients, this does that without asking you to learn a menu tree first.

Where it will frustrate you

The 4.3 rating across 358 reviews with a 10 percent three-star share is mostly about the generator: output frequency reverts to 1 kHz when you return to scope mode, and accuracy drifts at higher setpoints.

There is a single probe channel and no custom voltage multiplier factor, instructions do not clearly explain probe versus generator lead connections, and the probe calibration screw is fragile. Check the probe on arrival.

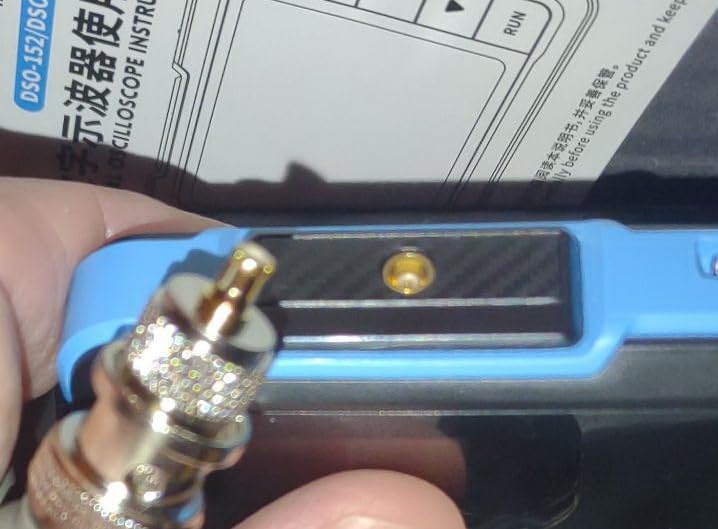

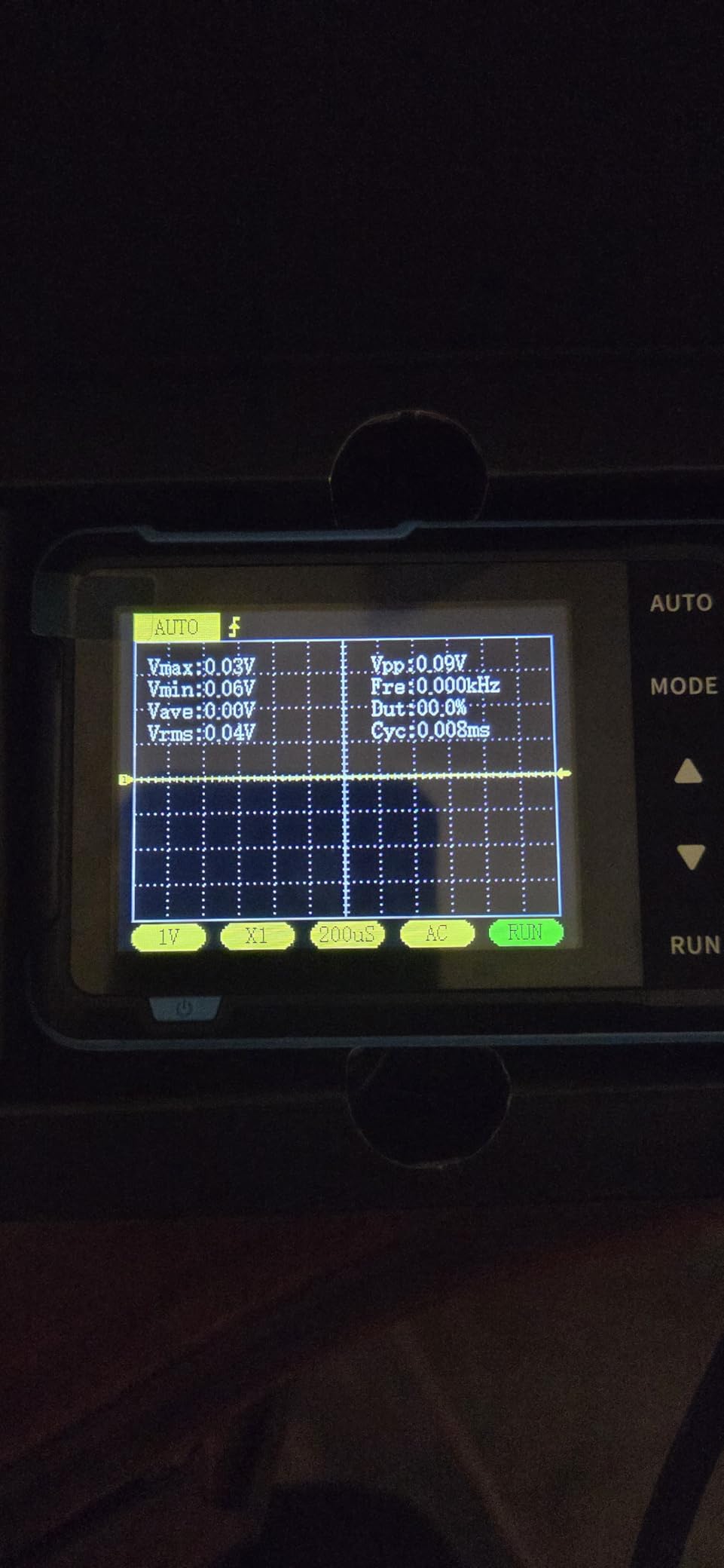

10. FNIRSI DSO152: A Pocket Checker For Ripple And Low-Frequency Work

The DSO152 is the smallest and most specialised pick here. Two hundred kilohertz of bandwidth and 2.5 MS per second real-time sampling in a unit that weighs 10.2 ounces and measures 3.78 by 2.64 by 0.79 inches.

It comes fully assembled, which means no soldering and no setup. The included 10x probe handles up to 800 VPP, roughly 280 V AC, and voltages up to 400 V are within range.

Trigger modes cover Auto, Normal and Single, so you can catch an aperiodic digital event rather than waiting for a repeat. One-key AUTO sets all parameters and a long press calibrates the baseline.

The built-in 1000 mAh cell gives about four hours, and the same Type-C port handles charging, data transfer and firmware upgrades.

Where this scope earns its place

Treat it as an always-in-the-toolbox instrument rather than a bench scope. Ripple on a supply rail, PWM at a low duty cycle and low-frequency audio are all inside what it can show.

Because it needs no mains ground reference for its measurements, it is the safer tool to grab quickly, and at that weight it does not get left behind in a drawer.

Where it will frustrate you

Two hundred kilohertz of bandwidth excludes anything faster, so if you are chasing switching regulator ringing above a few kilohertz you need one of the bench scopes instead.

A single channel means no phase comparison between two signals, and the 320×240 screen plus 2.5 MS per second limit waveform detail. Triggering and menu navigation also need practice.

How to Choose an Oscilloscope for Hobby Work

Start with bandwidth, because it is the number marketing leads with. Analog bandwidth is the range of frequencies the front end can pass to the display with acceptable attenuation. A rule of thumb for hobby work: use roughly ten times the highest frequency you expect to see, so audio at 20 kHz wants a 200 MHz scope and a 1 MHz switching node is already comfortable on 20 MHz.

Sample rate is a separate number and is frequently confused with bandwidth. Bandwidth describes what the analog path can carry; sample rate describes how many points per second the scope digitises. Four times the bandwidth is the usual recommendation, so a 100 MHz scope wants at least 400 MSa/s. Two of the picks here run 250 MSa/s against 50 MHz of bandwidth, which is a healthy ratio.

Memory depth, or record length, is the most underrated spec. It is how many samples the scope holds for one acquisition. Deep memory lets you capture a long burst at a fast timebase and zoom in afterwards instead of choosing the timebase correctly on the first try. The bench scopes here hold between 14 and 24 megasamples; the pocket and handheld units hold thousands of points, which is their main limitation.

Channels: two is the minimum worth buying, because comparing input to output is the core of debugging. Four becomes valuable once you need a supply reference alongside a clock and a data line.

Check whether protocol decoding is unlocked in base firmware. I2C, SPI and UART decoding on a Siglent SDS or a Rigol DS scope is included rather than licensed, which saves both money and the frustration of finding a decode that only reads half your bus.

Finally, match the form factor to the work. A bench scope wins for long captures and comfortable reading. A handheld with an integrated multimeter wins when the circuit is not on your bench. A USB scope is fine for a laptop but ties you to a host machine and a driver.

Setting Up a Scope Safely

Nearly every beginner hardware injury comes from one mistake: connecting a bench scope ground clip to earth ground while probing a mains-referenced circuit. The short that follows can destroy the scope, the circuit under test, or both.

First, verify probe compensation. Attach a probe to the scope calibration output and adjust the small trimmer until the square wave shows no overshoot or droop. A flat top on a slow edge and a rounded top on a fast edge mean the probe is mistuned.

Second, work on battery-powered or isolated circuits whenever possible. A USB laptop, a bench supply and most microcontroller boards are safe ground references for the scope ground clip.

Third, for mains-connected equipment use a differential probe or an isolated scope, never a grounded bench unit. Never clip the ground lead of a grounded scope to a point above the earth-referenced part of the circuit.

Fourth, set the volts per division low before you connect the probe to anything you care about, and check the maximum input rating on the channel you are using. Start on the most sensitive range you can read from, then step up.

Frequently Asked Questions

Conclusion

The Siglent SDS1202X-E is our pick for the best oscilloscopes for hobbyists in 2026 because 200 MHz of bandwidth, 14 megasamples of memory and unlocked serial decoding cover almost anything a hobby bench throws at it. If you need four channels, take the Siglent SDS1104X-E for its channel count and unlocked decoders, or the Rigol DS1054Z for deeper memory and more capture per second.

For the best oscilloscopes for hobbyists who work away from a bench, the handheld combos here cover ripple, audio and automotive jobs in a bag rather than on a shelf. Check the current details for each pick below and choose the one that matches where your circuits actually live.
