When an I2C sensor stops answering or SPI data comes back scrambled, the fastest way to the answer is a logic analyzer that shows every clock pulse and every bit. We spent weeks putting eight USB logic analyzers through the same Arduino bench work, decoding I2C sensor bring-up, SPI display traffic, UART boot logs and 1-Wire reads, and these are the best logic analyzers for Arduino projects in 2026.
A logic analyzer records the HIGH or LOW state of several digital lines at once and turns that bitstream into readable protocol traffic. Unlike a multimeter, which shows you one voltage at a time and cannot see a 100 nanosecond pulse, a logic analyzer draws the whole conversation between your Arduino and a sensor. That makes it the fastest tool for finding a wrong address, a missing ACK, an inverted clock polarity or a baud rate that does not match.
The short answer for most readers: the 24 MHz eight-channel USB analyzer at the top of this list handles roughly nine out of ten Arduino debugging jobs, because almost every bus on a hobby bench runs far slower than that. Spend more only when you need adjustable logic thresholds, on-board capture buffers or analog inputs alongside digital ones. We explain where each device stops being enough in the buying guide below.
Table of Contents
Top 3 Best Logic Analyzers for Arduino Projects (October 2026)
HiLetgo 24MHz 8-Channel Analyzer
- 8 channels at 24 MHz
- Works with PulseView and Saleae software
- Handles 3.3V and 5V logic
KeeYees 24MHz 8-Channel Analyzer
- 12 color-coded test hook clips included
- Sigrok decoder support
- 8 channels at 24 MHz
DSLogic Plus 16-Channel
- 400 MHz buffered capture
- Adjustable 0.1V threshold
- 16 digital channels
Quick Spec Comparison of All 8 Analyzers in 2026
| Product | Specifications | Action |
|---|---|---|
| HiLetgo 24MHz 8-Channel USB Logic Analyzer |
|
Check Latest Price |
 Saleae Logic 8 |
|
Check Latest Price |
| Saleae Logic Pro 8 |
|
Check Latest Price |
 Saleae Logic Pro 16 |
|
Check Latest Price |
| DSLogic Plus 16-Channel |
|
Check Latest Price |
 LONELY BINARY Logic Analyzer Kit |
|
Check Latest Price |
 Comidox 24MHz 8-Channel Logic Analyzer |
|
Check Latest Price |
| KeeYees 24MHz 8-Channel Analyzer |
|
Check Latest Price |

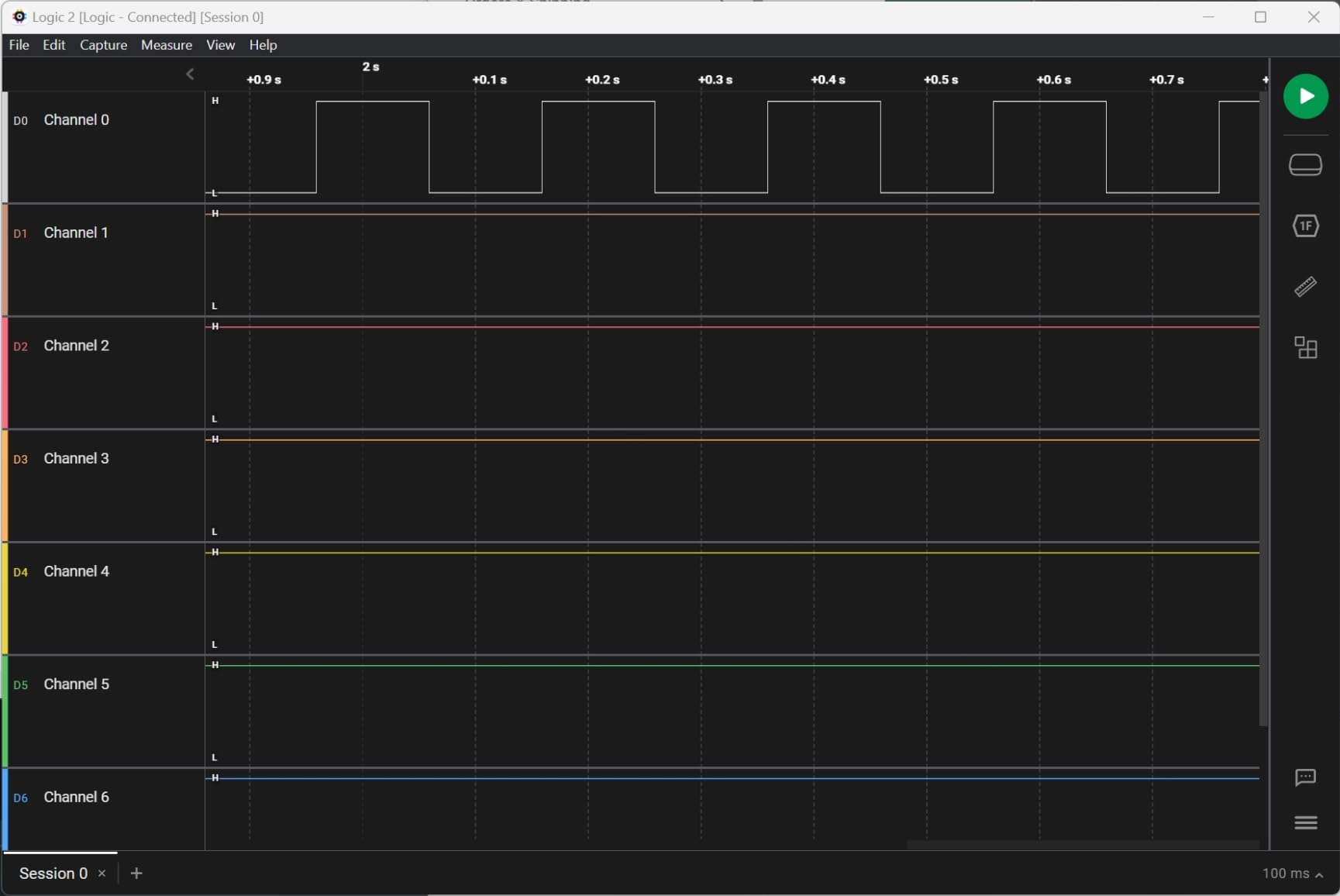

1. HiLetgo 24MHz 8-Channel USB Logic Analyzer – Best Overall for Arduino
HiLetgo USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug
8 channels
24 MHz sampling
Input range -0.5V to 5.25V
Input impedance 1Mohm, 10pF
Pros
- Decodes UART
- I2C
- SPI and 1-Wire with free PulseView
- Eight channels cover MOSI
- MISO
- CLK and CS at once
- Reliable from 2V up to 5V logic levels
- Ferrite-beaded USB cable included
- USB powered and pocket sized
Cons
- No on-board capture buffer so the PC must keep up
- Only series resistor input protection
- Bundled jumper wires are basic
- Triggering in PulseView is simple start or stop
I put this analyzer on the bench first and it has stayed there since. Bringing up an MPU-6050 over I2C on an Arduino Uno took me about ten minutes: install PulseView, run the Zadig WinUSB step once, clip on SDA and SCL, add the I2C decoder, and the address transaction appeared as text instead of a guessing game. Eight channels means I can watch the whole SPI conversation on a display or SD card at the same time rather than probing one line at a time.
The sample rate ceiling of 24 MHz sounds modest until you look at real Arduino traffic. I2C at 100 kHz and 400 kHz, UART at 115200, and SPI on most hobby displays sit far below that, so the analyzer still resolves individual clock edges with room to spare. I saw clean traces up to roughly 6 MHz on a short flying-lead setup; at the very top of the range, distortion and occasional lockups show up, which matches what buyers report in reviews.
The input specification is the part that matters more than the headline number. The rated input range runs from -0.5V to 5.25V, with a high threshold starting at 2.0V and a low threshold ending at 0.8V, so 3.3V and 5V signals both register cleanly on STM32, ESP32 and Arduino boards. Protection is only series resistors, so probing anything above 5.25V is a bad idea.
Documentation is thin and no probes are included, and that is the one place where the box disappoints. The ferrite-beaded USB A to mini-B cable is better than most clones ship, but the Dupont leads are the usual flimsy wires, and thin unshielded leads pick up crosstalk when several lines switch at once. Buying a set of spring-grounded grabber probes is the single improvement I recommend before any real work.
What this analyzer handles well

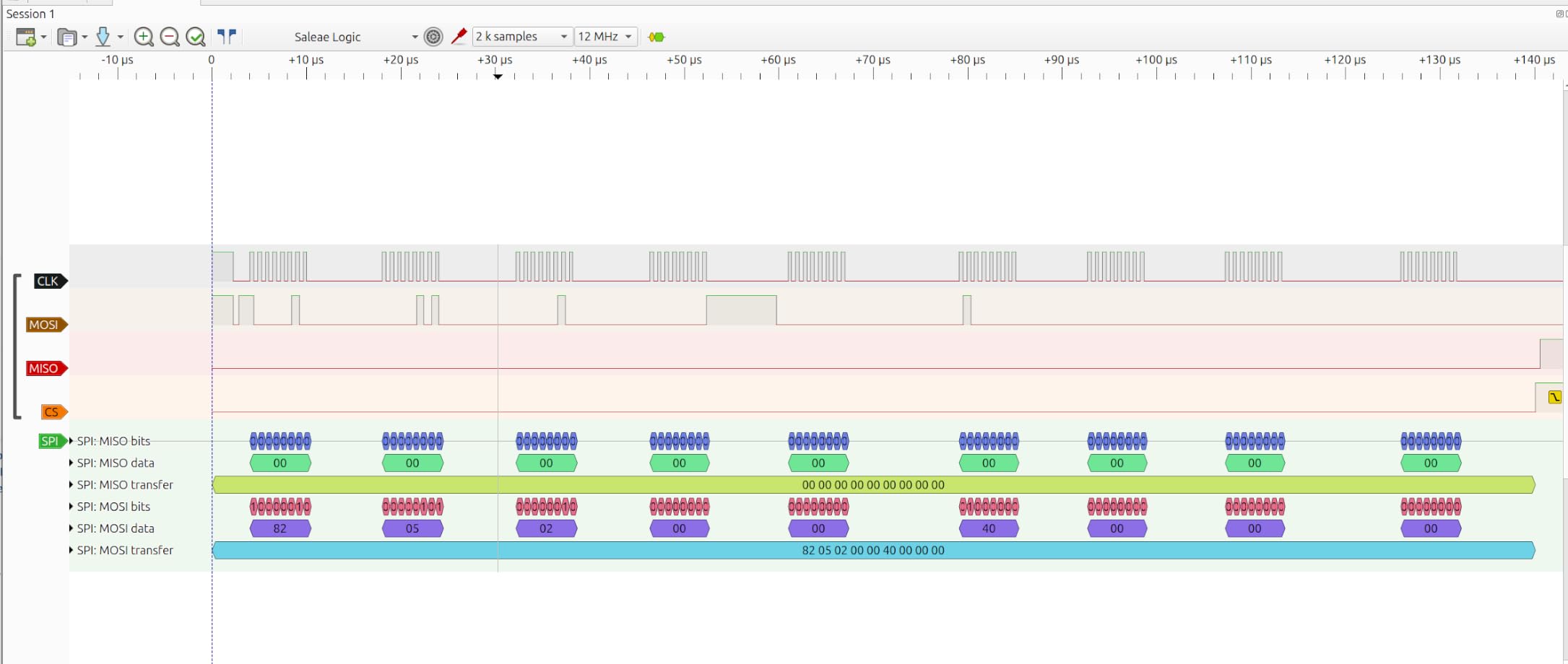

I2C address hunting, SPI display and SD card bring-up, UART boot logs from modems and ESP32 boards, and 1-Wire temperature sensor reads all decode cleanly. Selectable sample rates from 24 MHz down to 25 kHz let me drop the rate for slow serial traffic and still get a readable capture instead of a solid block of ones. The device enumerates as a Saleae compatible unit, so both PulseView and the older Saleae Logic software open it.
Where it falls short
There is no on-board capture buffer, so every sample travels over USB in real time. Put a USB hub in the path and buffering there can throttle the stream and drop samples, which is the classic complaint about this whole class of device, so plug it straight into the machine. On Windows you also need the Zadig WinUSB driver step before PulseView will see it, and a few laptop ports with proprietary drivers never enumerate at all.
2. KeeYees 24MHz 8-Channel Analyzer – Best Value with Included Probes
KeeYees USB Logic Analyzer Device with 12PCS 6 Colors Test Hook Clip Set USB Cable 24MHz 8CH 8 Channel UART IIC SPI Debug for Arduino FPGA M100 SCM
8 channels
24 MHz sampling
Maximum voltage 5V
12 color-coded test hook clips
Pros
- 12 SMD test hook clips in 6 colors included
- Sigrok support for RS232
- SPI
- I2C and 1-Wire
- Manufacturer tutorials and demo code available
- USB powered and compact
- Strong owner review volume
Cons
- 24 MHz ceiling limits fast signals
- Documentation is basic compared with tutorial resources
- Eight channels can feel tight on wide buses

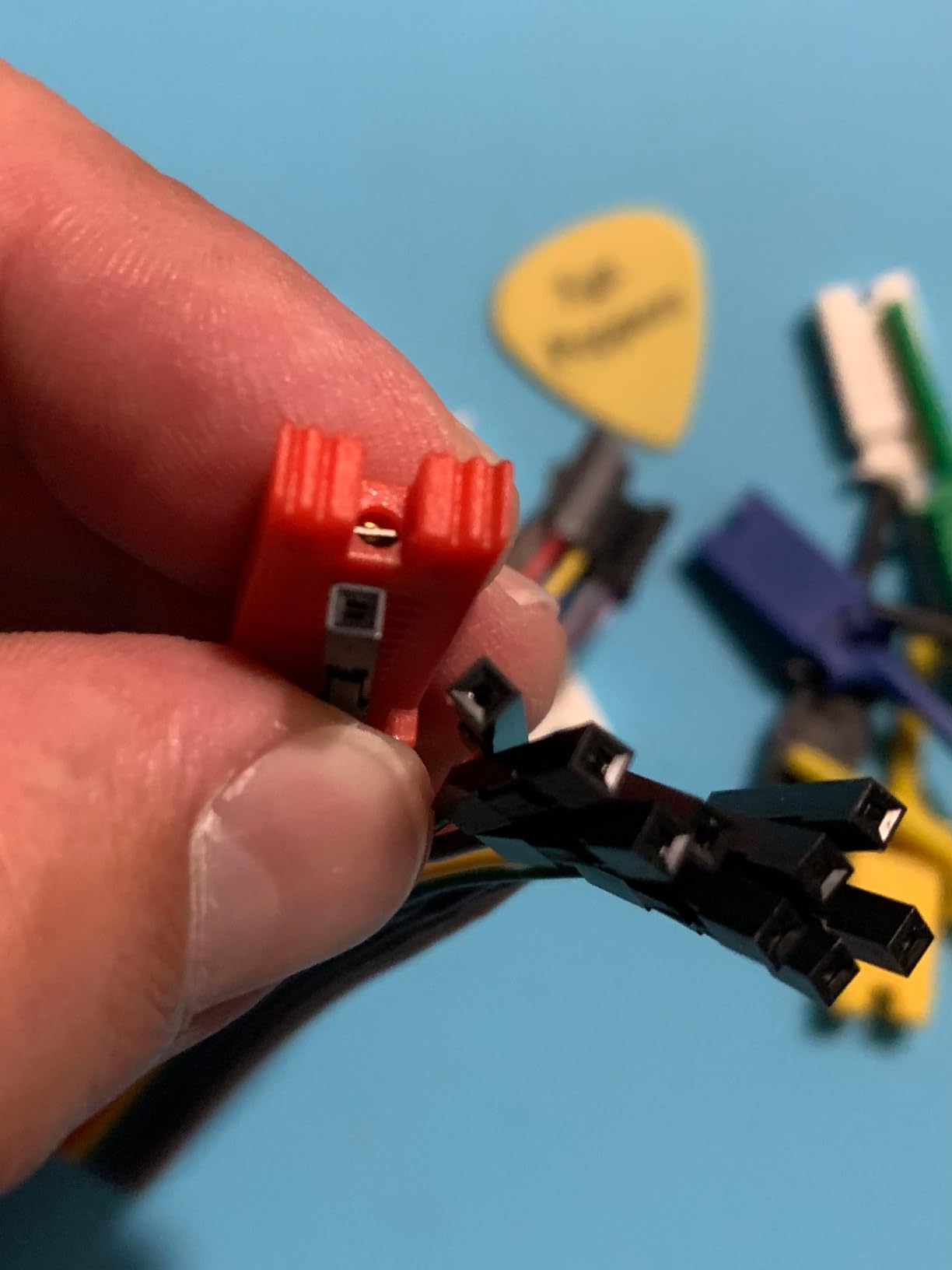

The reason this one beats the bare analyzer on my bench is the box contents. Twelve SMD test hook clips in six colors come in the kit, which is the accessory most people end up buying separately anyway. With color-coded clips I can keep SPI lines straight across a crowded breadboard without re-labeling wires every time I rewire the circuit, and the thin lead problem largely goes away because the clips grip the pin instead of floating near it.

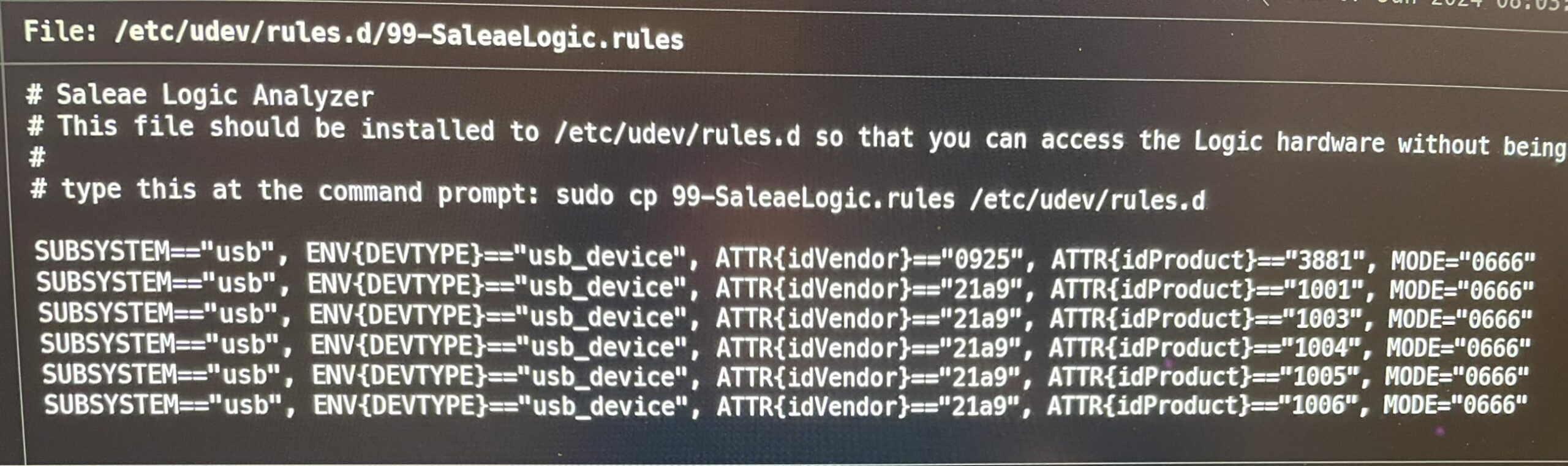

Underneath it is a familiar 24 MHz eight-channel design that enumerates as a Saleae compatible device, so PulseView and other open-source protocol analysis software handle RS232, SPI, I2C and 1-Wire without fuss. The manufacturer also publishes tutorials, demo code, flashing tools and class libraries on GitHub, which is genuinely useful when you are trying a protocol for the first time and want a known-good capture to compare against.
Reviewers consistently single out the clips as the feature that makes the device usable, and with over two hundred ratings the feedback base is wide enough to trust. The limitations are the ones shared by this whole price class: a hard 24 MHz ceiling, no analog capability at all, and eight channels that can feel cramped when you are tracing a wide data bus or several buses at once.
Setup is the standard Windows dance: install PulseView, replace the driver with WinUSB through Zadig, then connect the ground clip to the Arduino ground before attaching any signal channel. That ground clip is the step beginners skip, and without it the channels read erratically and no decoder output makes sense. Once grounded, the capture is stable.
When this is the right buy
Choose it when your work is I2C, SPI, UART or 1-Wire on Arduino, ESP32 or STM32 boards at ordinary hobby speeds, and when you would rather not shop for probes separately. The bundled clips, the cross-platform open-source software support and the tutorial material make it the lowest-friction entry point on this list for someone setting up a first bench.
When to look elsewhere
Skip it if your SPI bus runs above 10 MHz, if you need to trigger precisely on a specific edge pattern, or if you plan to sniff an 8-bit parallel bus plus a clock at the same time. None of that fits in 24 MHz with eight channels. Also note that the documentation in the box is thin, so budget an afternoon with the published tutorials rather than expecting to be running in five minutes.
3. DSLogic Plus 16-Channel – Best for High-Speed and Noisy Buses
DreamSourceLab DSLogic Plus USB-Based Logic Analyzer with 400MHz Sampling Rate, 256Mbits Memory, USB 2.0 Interface, 16 Channels
16 digital channels
400 MHz buffered mode
256 Mbits on-board SDRAM
Threshold adjustable in 0.1V steps
Pros
- 400 MHz buffered capture at 2.5ns resolution
- Adjustable threshold in 0.1V steps
- DSView offers strong configurable triggering
- Time-measuring cursors for timing work
- Shielded fly wires and aluminum case
Cons
- No analog channels on this model
- DSView UI differs from PulseView in places
- Light display mode too bright for small pulses
- Fly wires awkward without breadboard pins

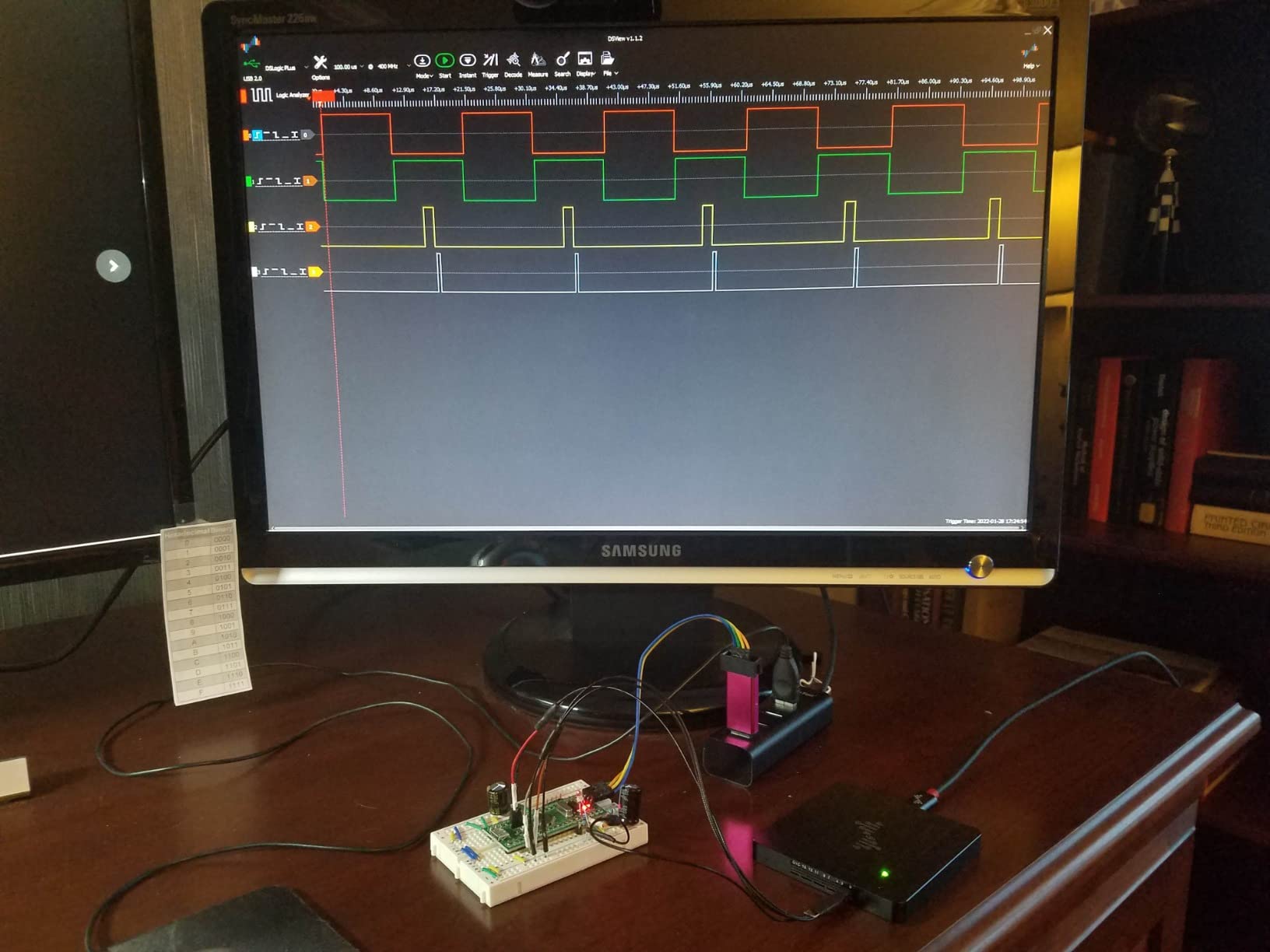

This is the step-up device for anyone whose signals outrun a 24 MHz clone. It captures in two modes: stream mode pushes samples over USB 2.0 Type-C into PC memory for long recordings, while buffer mode runs at up to 400 MHz on four channels, 200 MHz on eight and 100 MHz on all sixteen from the 256 Mbits of on-board SDRAM. That buffer is the whole point, because a high-rate capture no longer depends on the host keeping up.
The adjustable threshold in 0.1 V increments is the feature I would cite first for embedded work. A fixed threshold near 1.5 V or 2 V is fine for 5V and 3.3V logic, but a 1.8 V STM32 or ESP32 rail can sit right on the edge and read as noise. Turning the threshold to match your rail removes that whole class of false readings.
DSView, its open-source software, ships with nearly 100 protocol decoders and runs on Windows, macOS and Linux. It includes FPGA-based triggering in buffered mode and time-measuring cursors, which made it my pick for measuring setup and hold times rather than just decoding bytes. Owners report using it to snoop higher-speed RS485 traffic and to find schematic-versus-board mismatches on STM32 and Raspberry Pi boards.
The compromises are real. There are no analog channels on this model, and DSView is a sigrok fork, so the interface differs from PulseView in ways that can annoy people who already know PulseView well. The shielded fly wires are better than bare Dupont leads but still awkward on a breadboard unless you use the included pins, and the display light mode is far too bright when you are inspecting small pulse features.
Where it earns its place
It is the right pick for fast SPI, RS485 or UART traffic above about 10 MHz, for 16-channel work such as tracing a parallel bus, and for anyone debugging 1.8 V logic where a fixed threshold fails. Sixteen channels also mean you can watch clock, data lines and several control signals together without swapping probes mid-capture.
Where it disappoints
If all you do is I2C sensor bring-up on an Arduino, this is far more capability than you need and the extra complexity does not pay you back. It also skips analog entirely, and if you want to watch a power rail or a ringing edge you will still need something else. Several reviews also flag documentation errors, so verify pin assignments against a datasheet rather than trusting the guide.

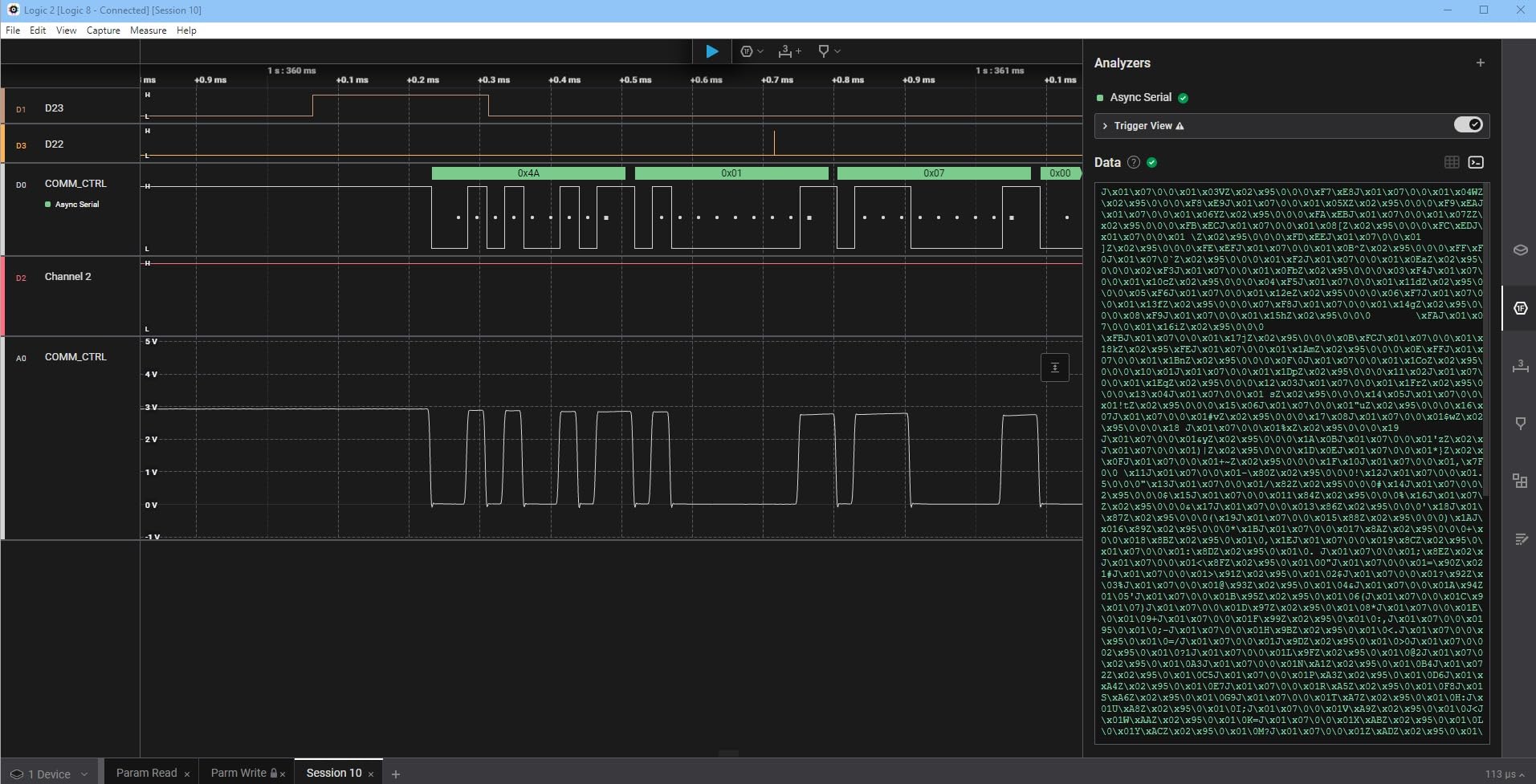

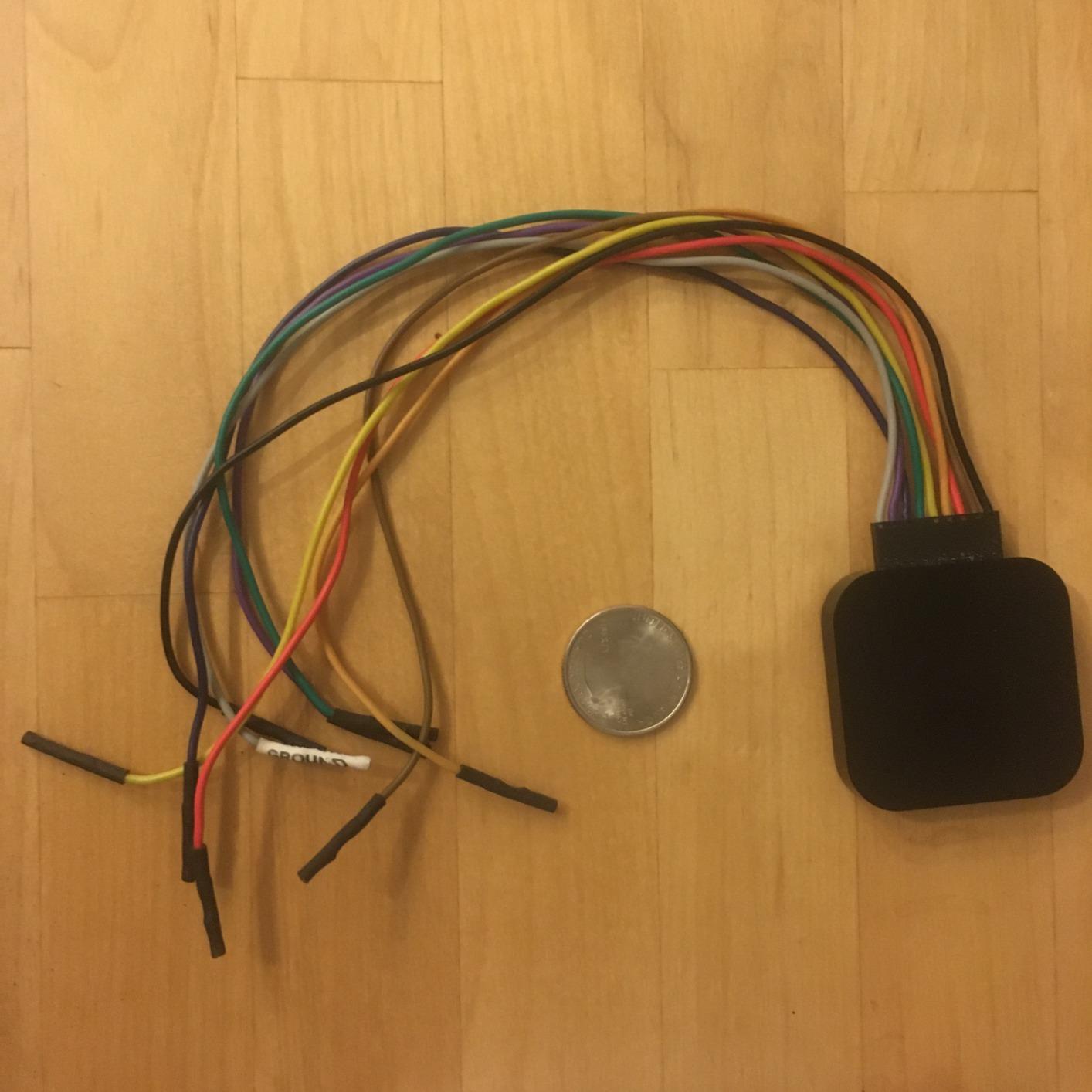

4. Saleae Logic 8 – Best Software Experience for Beginners
Logic 8 (Black) – Saleae 8-Channel Logic Analyzer
8 digital or analog inputs
Up to 100 MS/s digital
10 MS/s analog
10 billion+ sample streaming
Pros
- Native Saleae software with an extensive analyzer library
- Compact and well built
- Windows
- Mac and Linux support
- Inputs switch between digital and analog
- Long captures stream into PC memory
Cons
- Analog sampling of 10 MS/s is modest
- Premium pricing against clones
- Older software lacked a true real-time view
The Saleae experience is the one most people describe as polished. There is no driver juggling, no Zadig step and no guessing which generic device profile to pick. Plug it in on Windows, Mac or Linux and the software identifies it, then offers a library of protocol analyzers covering SPI, I2C and more than two dozen others. For someone who has never opened PulseView, that difference removes the entire barrier to getting a decoded capture.
Eight inputs can be assigned as digital or analog channels, so the same box handles a UART log and a quick look at a supply rail. Digital capture reaches up to 100 MS/s and analog up to 10 MS/s, with samples streamed into PC memory, which is why the software can hold captures of ten billion samples or more. In practice I would treat the analog path as a convenience rather than a measurement tool, since 10 MS/s is slow for anything analog-sensitive.
The reviews are strongly positive, with a large share of five-star ratings, and the recurring themes are easy setup, solid build and a device that teaches you protocol work. Owners frequently mention using it to learn CAN bus and other low-level protocols, which is fair: the analyzer guides you toward adding the right decoder instead of leaving you to interpret raw rows of bits.
The reservation everyone lands on is the digital-to-analog tradeoff, and the obvious one: this sits well above generic 24 MHz clones in cost while still topping out at 8 channels. If you are only decoding Arduino I2C and SPI traffic below 10 MHz, the cheaper devices on this list do the same job for a fraction of the outlay.
Reasons to choose it
If you work across Mac, Windows and Linux, or you want a device that needs no driver surgery, the Logic 8 removes the most common source of frustration in this category. The switchable digital and analog inputs also make it the only device here that gives you both views in one box without extra hardware, which is convenient for power-supply debugging alongside bus work.
Reasons to pass
Pass if your budget is fixed and your protocols are ordinary hobby speeds, because nothing in the Arduino I2C, SPI or UART range needs 100 MS/s. Also weigh the 8-channel limit carefully: sixteen-channel debugging or wide parallel buses will push you to a larger model or a device like the DSLogic Plus.
5. Saleae Logic Pro 8 – Best When You Need Analog Beside Digital
Logic Pro 8 (Black) – Saleae 8-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
8 digital or analog inputs
500 MS/s digital
50 MS/s analog
USB 3.0 streaming
Pros
- 500 MS/s digital and 50 MS/s analog in a small box
- Real-time streamed digital and analog view
- Software described as easy to learn
- Eight analog channels built in
- Reliable SPI flash and RS485 sniffing reported
Cons
- System freezes reported at the top sample rate
- Community decoder extensions may not compile
- Included cable is long and unwieldy
- Very high outlay
Eight analog channels in the same box is the reason this model exists. Every channel can be assigned as digital or analog, digital capture runs to 500 MS/s over USB 3.0 and analog reaches 50 MS/s, so you can watch a bus and the supply rail underneath it in one synchronized capture. For power-integrity or signal-integrity work on an embedded board, that combination removes the need to correlate two separate instruments.
Owners describe the software as very easy to learn and well supported, and the real-time streamed view of both domains is the feature cited most. Captures of ten billion digital samples or 500 million analog samples go into PC memory, and I would pair that with a machine that has plenty of RAM, because the software is happy to fill it.
Reported problems cluster around the extremes. Several reviewers hit system freezes at the very top 500 MS/s rate and had to reconnect the cable, and some community decoder extensions for advanced protocols no longer compile against newer software versions. One reviewer returned a unit after repeated freezes. That is a real caveat: buy it for the headroom, but do not expect the maximum rate to be rock solid in every setup.
Where it makes sense
This is the pick for working embedded engineers who need analog and digital in the same capture, for sniffing SPI flash buses and RS485 traffic at speed, and for anyone who wants a device that grows with the job rather than against it. The adjustable logic threshold also helps when your board runs at an unusual voltage.
Where it does not
It is hard to justify for Arduino I2C and SPI bring-up, and the included USB cable is long and awkward on a crowded desk. If your work stays digital and slow, the extra capability sits unused and the outlay is the largest in this group after the 16-channel model.
6. Saleae Logic Pro 16 – Best for Wide Buses and Lots of Channels
Saleae Logic Pro 16 (Red) – Saleae 16-Channel Logic Analyzer – Compatible With Windows, Mac, or Linux – Easy To Use, Ultra-Portable, Saves Time & Frustration
16 digital or analog inputs
500 MS/s digital
50 MS/s analog
Aluminium unibody enclosure
Pros
- Sixteen channels give headroom for wide buses
- 500 MS/s digital and 50 MS/s analog
- Very high share of five-star ratings
- Full Windows
- Mac and Linux support
- SPI
- I2C and 23+ analyzers included
Cons
- Highest outlay in the group
- Large physical footprint for a 16-channel device
- Smaller pool of owner reviews

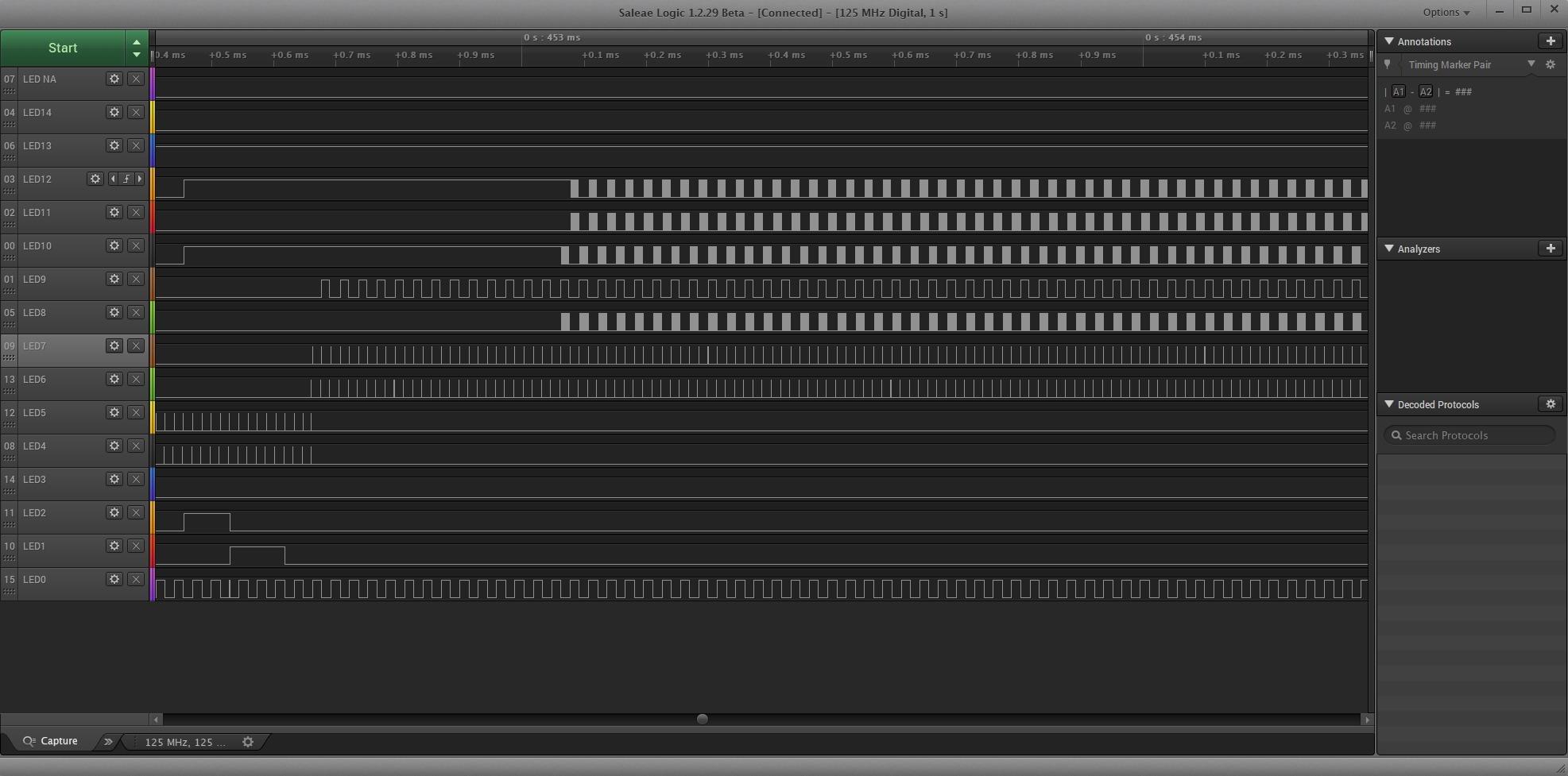

Sixteen multi-use inputs is the reason to step up to this model. Eight channels is comfortable for I2C and SPI, but as soon as you are tracing a parallel data bus alongside its clock and several control lines, or watching two buses at once, eight channels forces you to abandon channels mid-capture. At sixteen you can clip everything once and stop negotiating with your probe budget.
The electronics match the Logic Pro 8: up to 500 MS/s digital, up to 50 MS/s analog, SPI, I2C and more than two dozen additional protocol analyzers, and streaming captures of ten billion digital or 500 million analog samples over USB 3.0. The aluminium unibody enclosure feels like lab equipment rather than an accessory, and it runs on Windows, Mac and Linux.
The reviews skew very positive, with the great majority at five stars and essentially no one-star feedback, and the stated justification is consistently the same: the extra channels and sampling headroom are worth it for advanced embedded and protocol work. Review volume is lower than cheaper models simply because the device appeals to a narrower audience.
Two practical notes. The footprint is larger than the 8-channel models, so it needs desk space next to the board you are probing, and the channel count does not help if your problem is analog quality or triggering precision, since those depend on the same front end as the smaller model. If you only need eight channels and one analog view, the Logic Pro 8 covers it in a smaller box.
Best fit
Wide parallel buses, LCD and display interfaces, memory buses, multi-bus debugging and any job where you would otherwise run out of channels halfway through an investigation. It also suits a shared lab bench where several signals need to be watched continuously rather than sampled one setup at a time.
Poor fit
It is the wrong tool for a first Arduino sensor project, and the outlay puts it out of reach for most hobby budgets. Reviewers who expected a hobby-grade bargain tend to be disappointed, while the people who buy it for professional protocol work almost never regret the channel count.
7. LONELY BINARY Logic Analyzer Kit – Best Breadboard Adapters
LONELY BINARY Logic Analyzer Kit, 8 Channel 24MHz USB with Breakout Boards
8 channels at 24 MHz
Breadboard adapter and breakout board
2.54mm pins and pads
One year warranty
Pros
- Adapter and breakout boards remove flying-lead pain

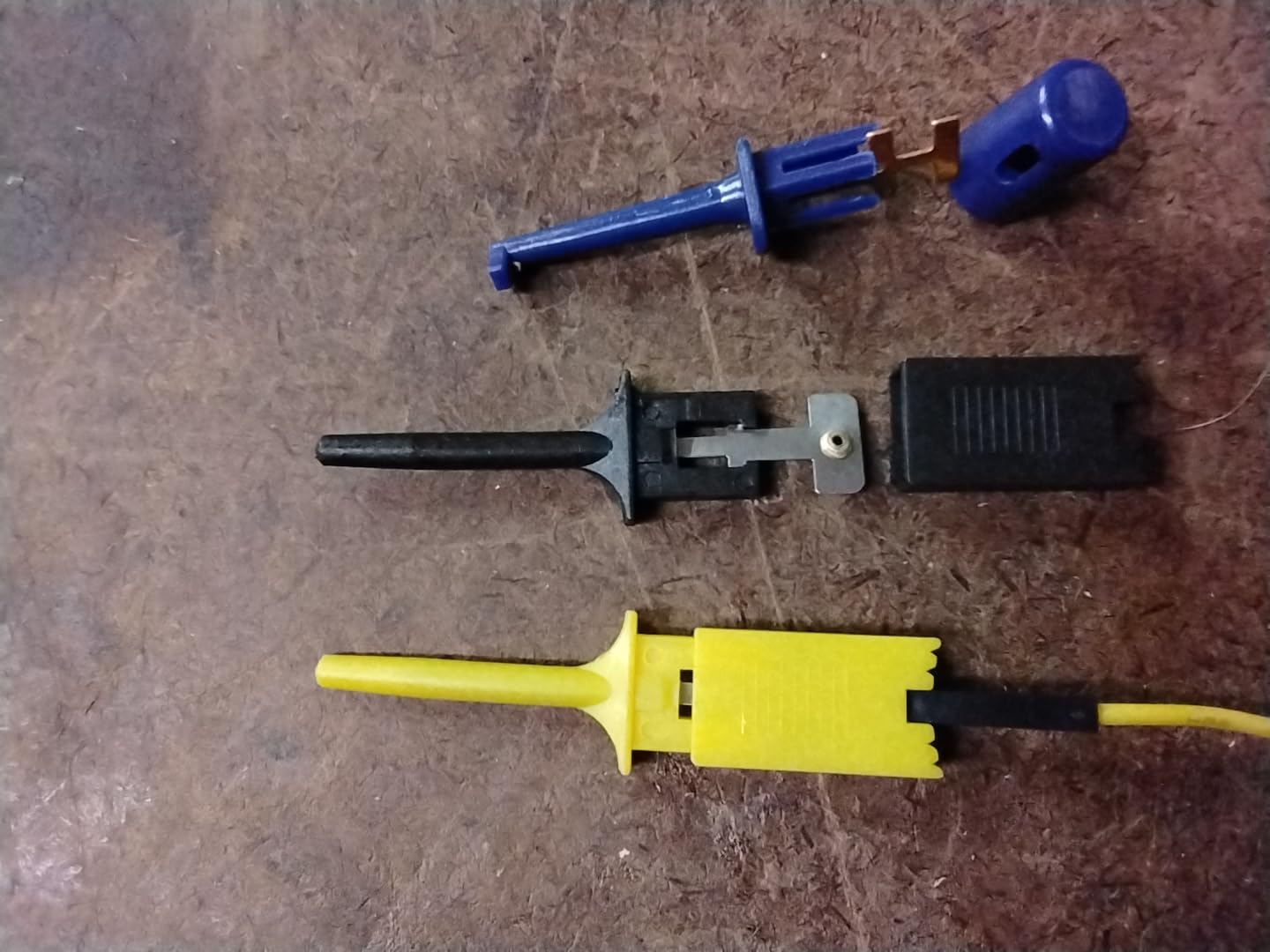

- Ten test clips and five alligator clips included
- USB-A and USB Type-C cables both supplied
- Storage case keeps a portable kit organized
- Eight channels handle I2C
- SPI and UART
Cons
- Lowest average rating in the group at 4.2
- About 12 percent of reviews are one star
- Bundled clip and harness accessories are basic
- 24 MHz ceiling limits fast protocols
What separates this kit is the connection hardware rather than the analyzer. You get a logic level breadboard adapter, a breakout board and an expansion board that breaks all eight channels out to 2.54 mm pins and clip pads, so you can wire the analyzer straight to a breadboard, an ESP32, an Arduino or a Raspberry Pi header without a single flying wire. For solder-free prototyping that is a bigger deal than sample rate.

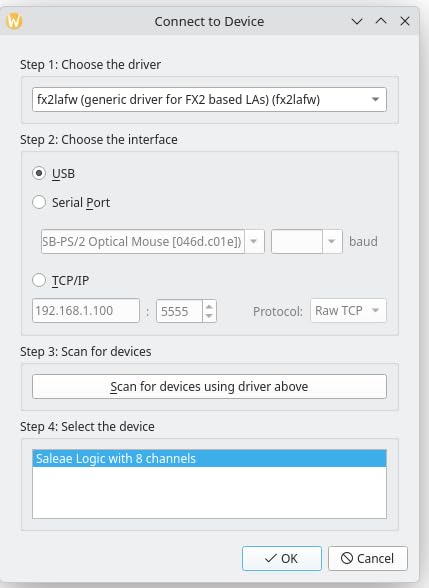

The analyzer itself is the familiar 24 MHz eight-channel class, which is enough for I2C, SPI and UART on hobby boards, and the kit works with open-source software on Windows, Mac and Linux with event triggering. Both USB-A and USB-C cables are included, which removes the port-compatibility guessing that trips people up, and the storage container keeps the whole set in one place in a field kit.
Reviewers like the adapters far more than the analyzer, which is exactly the point of the bundle. Traces come across as accurate, triggering is described as event-capable, and the dual cables remove compatibility friction. Owners working with several boards in rotation tend to value the storage case more than expected.
The rating picture is the most mixed here: 4.2 overall, with roughly an eighth of reviews at one star and another slice at three stars. The complaints cluster around accessory quality, bundle contents from certain sellers, and the 24 MHz ceiling, rather than around anything fundamentally broken.
When it makes sense
Buy it when you prototype on breadboards, switch between Arduino, ESP32 and Raspberry Pi boards, and would rather not fight loose Dupont leads. The adapter approach also makes it easy to hand the kit to a student or a workshop group without each person wiring their own probes.
When to skip it
Skip it if you already own decent test hooks and clips, because the analyzer itself is a standard 24 MHz unit and the accessory value drops away. It is also the wrong choice for fast SPI, for triggering-heavy capture work, or if you want a smooth first-time software experience without any driver setup.
8. Comidox 24MHz 8-Channel Logic Analyzer – Best Budget Starter
Comidox USB Logic Analyzer 24MHz 8 Channel Debug Tool for Arduino ARM FPGA
8 digital channels
24 MHz sampling
0V to 5.5V input range
1.5V logic threshold
Pros
- Works with Saleae Logic software and PulseView
- UART
- SPI and I2C analysis out of the box
- Selectable rates from 24 MHz down to 25 kHz
- USB cable and ten Dupont leads included
- Low outlay for a complete first setup
Cons
- Fixed 1.5V logic threshold cannot be tuned
- 24 MHz ceiling for fast buses
- Limited documentation and instructions

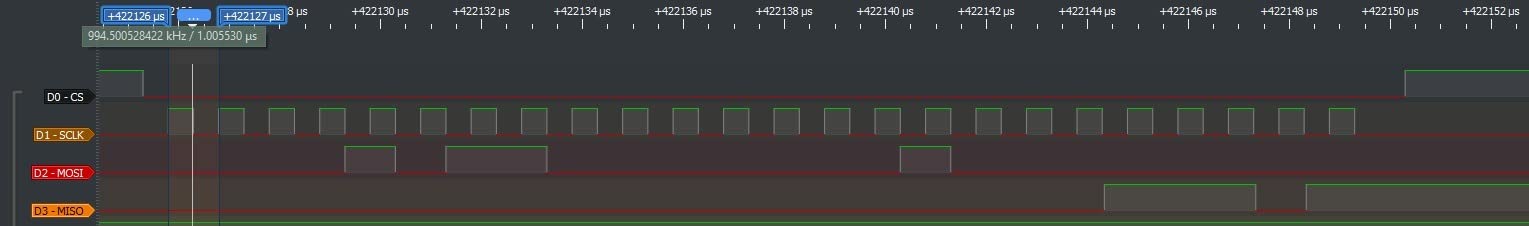

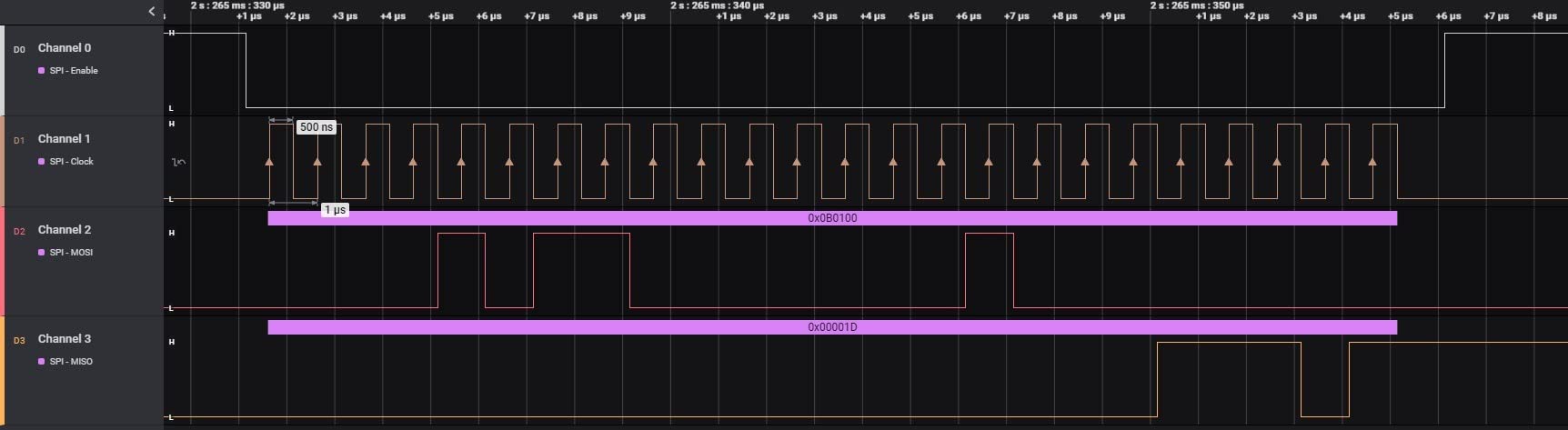

This is the most straightforward budget entry on the list: eight digital channels sampling up to 24 MHz, selectable down through 16, 12, 8, 4, 2 and 1 MHz and further into the hundreds of kilohertz, in a package that includes the USB cable and ten Dupont leads. It enumerates as a Saleae compatible device, so both Saleae Logic software and sigrok PulseView open it without hunting for a profile.
For Arduino, ARM and FPGA debugging at ordinary speeds it does everything an I2C or SPI bring-up needs. The input range is 0V to 5.5V with a fixed 1.5V logic threshold, so anything below 1.5V reads as low and above reads as high. That covers 5V and 3.3V logic comfortably.
Owners rate it as a solid budget clone that delivers Saleae-compatible software support without much fuss, and the selectable sampling rates get called out as sufficient for everyday protocol work. The rating distribution is strong, with the large majority of reviews at five stars and only a small share at one star, where the complaints concern build quality and documentation.
The fixed threshold is the limitation worth planning around. If you later move to a 1.8 V board, the 1.5V threshold leaves very little margin and reads become unreliable, and there is no way to adjust it. For 5V and 3.3V Arduino, ESP32 and STM32 work it is a non-issue; for anything below that, choose a device with an adjustable threshold.
What you get for the outlay
A complete first setup with a cable and leads in the box, cross-platform software support through PulseView, and eight channels, which is enough to watch clock, data and control lines on an SPI bus at the same time. For a student, a workshop or a first sensor project, nothing on this list is easier to justify.
Where you will outgrow it
The 24 MHz ceiling ends usefulness above roughly 6 MHz of real signal activity, and thin Dupont leads invite crosstalk when several channels switch together. Documentation is limited, so plan to learn PulseView from its own documentation. When you move to faster or lower-voltage work, an adjustable threshold and a real capture buffer are the first two things to upgrade.
Can You Use a Spare Arduino as a Logic Analyzer?
Yes, you can, and it is a genuinely useful weekend project. A SUMP-compatible sketch turns an Arduino Uno into a logic analyzer that PulseView will open, using a handful of pins as channels. The limits are real though: capture depth is a couple of thousand samples, the usable rate tops out around 5 MHz, and triggering falls apart on fast edges, so short pulses get missed. Use it to learn, not to settle an argument about a timing bug.
Community consensus on hobby forums is that most people can live without any analyzer until they hit a timing-dependent or order-dependent bug. That is usually the right moment to buy one, and at that point a USB device is more useful than turning one of your two Arduino boards into a test instrument.
How to Choose the Right Logic Analyzer for Arduino Work in 2026
1. Start with channel count
For I2C you need two channels plus ground. SPI needs four for a full duplex bus (clock, MOSI, MISO, chip select), and UART needs two if you want to watch transmit and receive together. Eight channels covers essentially every Arduino project, and sixteen only matters when you are tracing a parallel bus or two buses at once.
2. Match sample rate to bus speed, not to marketing
Sample at least four times the bus frequency so every edge is resolved cleanly. Real Arduino traffic rarely demands more: I2C at 100 kHz and 400 kHz, UART at 115200, and most SPI displays all sit well inside a 24 MHz device. That is the honest reason the budget units win most comparisons, and it is why 400 MHz matters only for fast SPI, RS485 or USB-adjacent signals.
3. Prioritise decoder support over raw speed
Protocol decoder coverage decides how fast you get an answer. PulseView and its sigrok library handle UART, I2C, SPI, 1-Wire, JTAG, SWD and more, and you can stack decoders so an IMU or display protocol sits on top of raw I2C. If you value open-source tools and cross-platform support, sigrok-compatible hardware keeps your options wide.
4. Check the logic threshold before you buy
The threshold is the voltage where an input counts as HIGH. A fixed 1.5V or 2.0V threshold handles 5V and 3.3V logic fine, but a 1.8V STM32 or ESP32 rail sits right on the boundary and produces garbage readings. If your boards run below 3.3V, buy a device with an adjustable threshold, such as the DSLogic Plus or a Saleae model.
5. Plan for memory depth and the host connection
Devices without on-board buffer send every sample to the PC over USB, so a USB hub in the path can throttle the stream and drop samples. Plug directly into the machine, and if you need long high-rate captures, choose a device with on-board SDRAM and a buffered mode. That is also where a USB 3.0 interface starts to earn its keep.
6. Do not ignore the probes
Flying Dupont leads are the weakest link in every cheap analyzer. Thin wires floating near the circuit pick up crosstalk during simultaneous switching and can corrupt a clean capture. Grounded grabber probes or test hook clips, and a solid ground clip on the board’s ground pin, fix more mystery readings than any hardware swap. Kits that include adapters and clips are worth a look for exactly this reason.
Logic analyzer or oscilloscope?
If you need to know what bytes went down the wire and in what order, a logic analyzer wins and is far cheaper. If you need voltage amplitude, rise times, ringing or analog behaviour on a rail, you need an oscilloscope, ideally a mixed-signal one. Most embedded debugging is protocol-shaped, which is why an analyzer is the better first purchase.
Protocol cheat sheet
I2C needs two channels and decodes cleanly even at 400 kHz on any device here. SPI needs four channels and starts to demand sample rate above 10 MHz. UART needs two channels and the slowest analyzer will do. 1-Wire needs one channel and very little bandwidth. JTAG and SWD need four to six channels. CAN needs a transceiver such as an SN65HVD230, because a plain single-ended analyzer cannot read a differential bus directly.
Known problems with cheap clones and their fixes
1. Sample rate collapses through a USB hub, because hubs buffer and throttle. Fix: plug the analyzer straight into the machine.
2. ReadTimeout errors in Saleae Logic 2 with FX2-based clones. Fix: use sigrok PulseView instead, which handles these devices reliably.
3. All channels read HIGH when they should be low. Fix: check probe contact and ground the analyzer to board ground.
4. 3.3V or 1.8V signals are missed. Fix: check the fixed threshold and move to an adjustable-threshold device.
5. Corrupted captures during fast switching. Fix: replace flying leads with grounded probes or test hook clips.
If you are also picking up other bench instruments for your hobby setup, our guide to golf swing analyzers covers the same question of matching a tool to the job it does.
Frequently Asked Questions
Can I use an Arduino as a logic analyzer?
Yes. A SUMP-compatible sketch turns an Arduino Uno into a logic analyzer that opens in PulseView, using a few pins as channels. The limits matter though: capture depth is only a couple of thousand samples, the usable rate tops out near 5 MHz, and triggering fails on fast edges so short pulses get missed. Great for learning, poor for settling timing arguments.
What is the best logic analyzer for Arduino?
For most Arduino work, an 8-channel 24 MHz USB logic analyzer running sigrok PulseView is the best choice. It handles I2C at 400 kHz, UART at 115200 and SPI at typical display speeds comfortably, and eight channels cover clock, data and control lines at once. Spend more only for adjustable logic thresholds, on-board capture buffers or analog inputs.
Do I need a logic analyzer or an oscilloscope?
A logic analyzer tells you what data went over the wire and in what order, which is what most embedded debugging needs. An oscilloscope tells you voltage, rise time and ringing, which matters for power rails and signal integrity. Start with an analyzer for protocol work, and add an oscilloscope when your problem is electrical rather than digital.
How many channels do I need for I2C and SPI debugging?
I2C needs two channels plus a ground connection. SPI needs four channels for a full duplex bus: clock, MOSI, MISO and chip select. UART needs two if you want transmit and receive side by side. Eight channels covers essentially every Arduino project, so buy eight rather than four unless you know you will trace a wide parallel bus.
Why is my logic analyzer not picking up 3.3V signals?
Most often it is the logic threshold, which is the voltage where an input counts as HIGH. Clones with a fixed threshold near 1.5V or 2.0V read 3.3V signals correctly, but 1.8V logic sits right on the boundary and produces noise. Check the ground clip first, then move to a device with an adjustable threshold in 0.1V steps if your board runs below 3.3V.
Why does my sample rate drop when I use a USB hub?
USB hubs buffer packets, which throttles the stream coming from an analyzer that has no on-board capture buffer. The result is dropped samples, distorted captures or outright disconnects. Connect the analyzer directly to the machine rather than through a hub, and if you regularly need long high-rate captures, choose a device with on-board memory and a buffered mode.
Can a logic analyzer decode CAN bus?
Not directly from a single-ended input. CAN is a differential bus, so you need a transceiver such as an SN65HVD230 to convert the CANH and CANL pair into a single logic level your analyzer can read. Once the transceiver is in place, most sigrok-compatible analyzers can decode the frames, and Saleae software includes a CAN analyzer.
Which Logic Analyzer Should You Buy?
If you are debugging I2C, SPI, UART or 1-Wire on an Arduino at ordinary hobby speeds, the HiLetgo 24 MHz eight-channel analyzer at the top of this list is the one to buy. It has the widest owner feedback of any device here, handles 3.3V and 5V logic without fuss, and works with free PulseView software on every platform. If you want the probes included, the KeeYees kit with its twelve color-coded test hooks is the better all-in-one box.
Step up to the DSLogic Plus when your signals run fast or sit at an unusual voltage: an adjustable threshold in 0.1V steps and 400 MHz buffered capture solve problems the budget devices simply cannot touch. Buy the Saleae Logic 8 when you want a zero-friction software experience across Mac, Windows and Linux, and the Logic Pro 8 when you need analog and digital channels in one synchronized capture. The Logic Pro 16 is for wide parallel buses and multi-bus work where sixteen channels pay for themselves.
Whichever you choose, budget an hour for the PulseView setup, connect the ground clip before any signal lead, and replace thin flying wires with grounded probes if your captures look wrong. That last habit solves more bad readings than any hardware upgrade in 2026.
